Unit · AXIAL-PISTON PUMP
AA10VO63LR8DS/53R-VWC12N00BASICR902433143
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63LR8DS/53R-VWC12N00BASIC, material number R902433143. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902433143
- Type code
- AA10VO63LR8DS/53R-VWC12N00BASIC
- Group
- A10VO 63
- Edition
- 06/2020

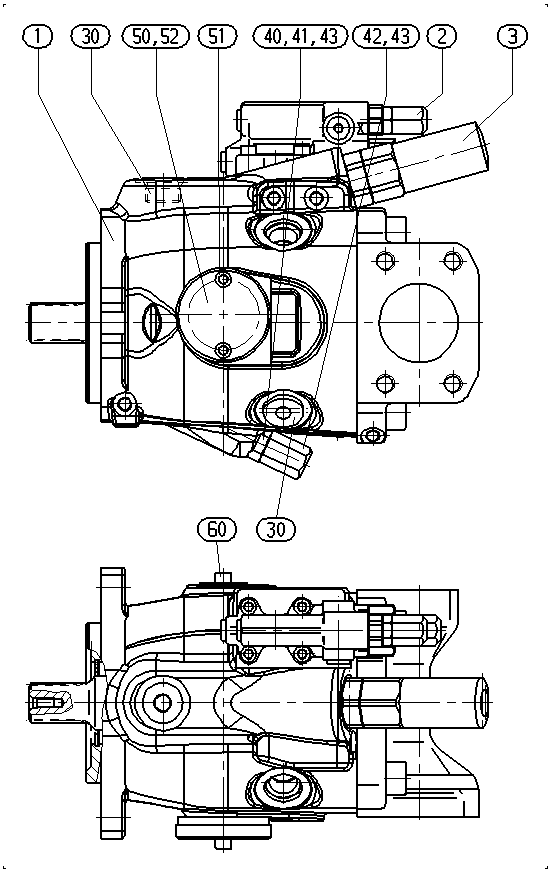

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902433042 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451616 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469597 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R902423055 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 | ||
| R910967428 | COVER | 1 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 2 | ||
| R910756601 | O-RING | 1 | ||
| R902060202 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
