Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31R-PSC42N00 -S1463R902433319

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31R-PSC42N00-S1463, material number R902433319. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: without through drive (N00). Special version no. 1463.

Number
R902433319
Type code
A A10V O 71 DFLR/31R-PSC42N00 -S1463
Group
A10VO 71
Edition
06/2020

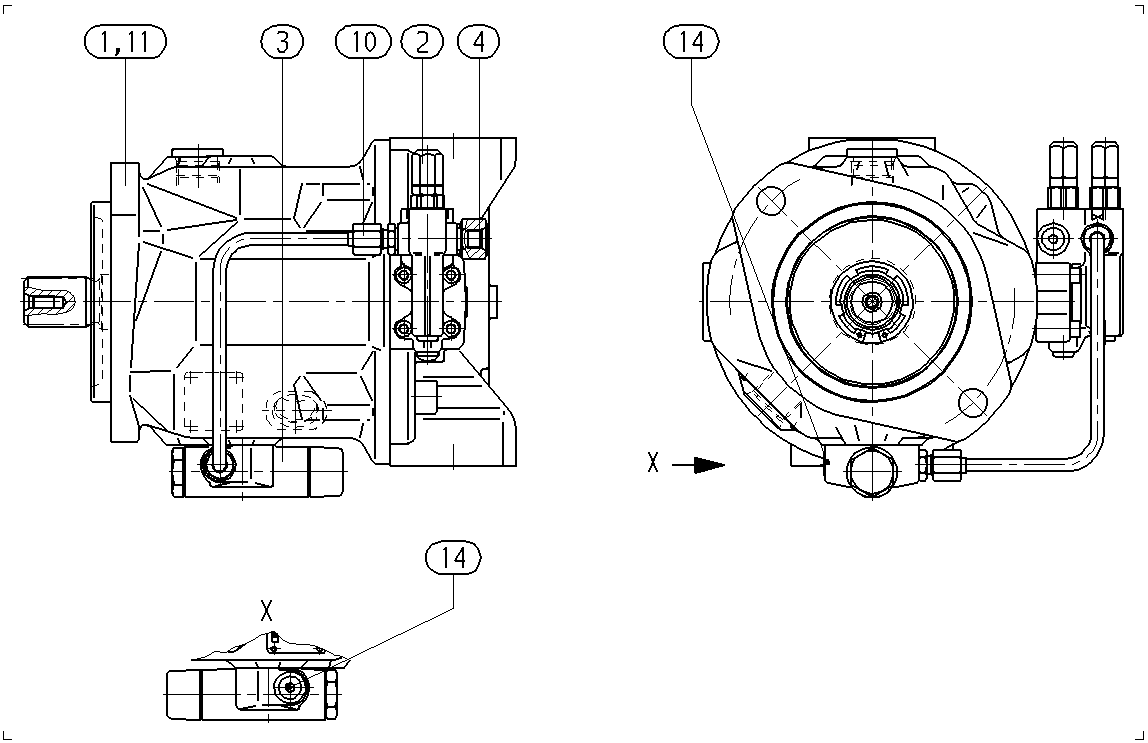

A A10V O 71 DFLR/31R-PSC42N00 -S1463 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902421652BASE UNIT Assembly parts list →L1
R902533361CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R902417284ADAPTER Assembly parts list →L1
R902408735PIPING Assembly parts list →L1
R902414360POWER DIAGRAM1
R909154478SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom42
Through driveWithout through driveN00

Other versions 9
