Unit · AXIAL-PISTON PUMP

AL A10VSO 18ED 73/31L-VSC12N00 -S1833R902433376

Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18ED73/31L-VSC12N00-S1833, material number R902433376. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 1833.

Number
R902433376
Type code
AL A10VSO 18ED 73/31L-VSC12N00 -S1833
Group
A10VSO 18
Edition
06/2020

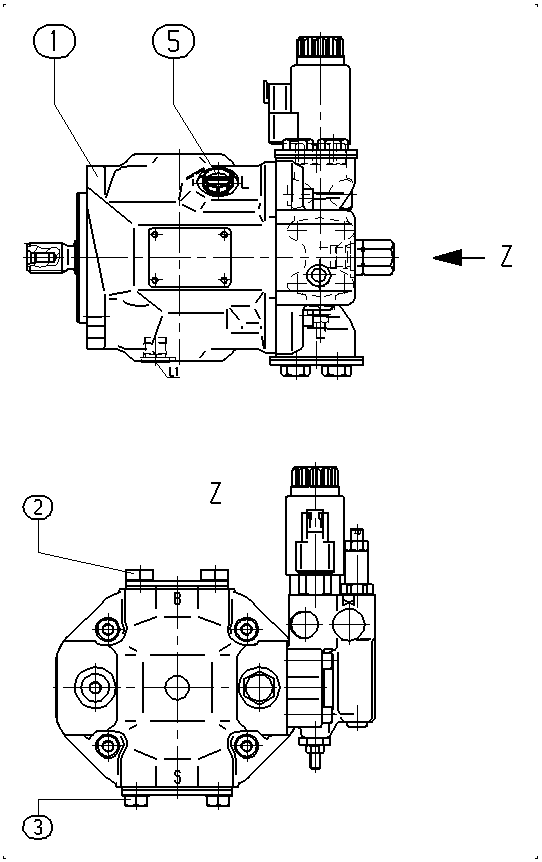

AL A10VSO 18ED 73/31L-VSC12N00 -S1833 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902433437AXIAL-PISTON PUMP Assembly parts list →L1
R902400574FLANGE COVER1
R902400578FLANGE COVER1
R902602015SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)1818
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftSplined shaft standard shaft ISO 3019-1S
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00

Other versions 7
