Unit · AXIAL-PISTON PUMP
A A10VSO 10 DRG /52R-PPC14N00R902433564
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DRG/52R-PPC14N00, material number R902433564. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10VS). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: parallel keyed Shaft DIN 6885 (P). Mounting flange: based on ISO 3019-1 2-hole (C). Working port: threaded port, metric Rear (14). Through drive: without through drive (N00).
- Number
- R902433564
- Type code
- A A10VSO 10 DRG /52R-PPC14N00
- Group
- A10VSO 10
- Edition
- 05/2020

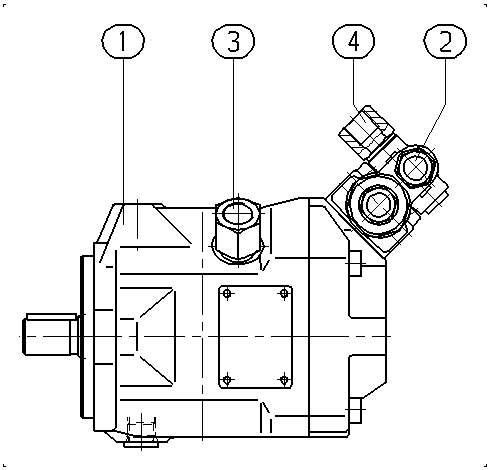

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902433479 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455384 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910928022 | ADAPTER Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10VS |
| Operating mode | Pump, open circuit | O |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Parallel keyed Shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-1 2-hole | C |
| Working port | Threaded port, metric Rear | 14 |
| Through drive | Without through drive | N00 |
