Unit · AXIAL-PISTON PUMP
AA10VO28DFR1/31R-VSC12N00-SO108R902434048
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFR1/31R-VSC12N00-SO108, material number R902434048. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 108.
- Number
- R902434048
- Type code
- AA10VO28DFR1/31R-VSC12N00-SO108
- Group
- A10VO 28
- Edition
- 06/2020

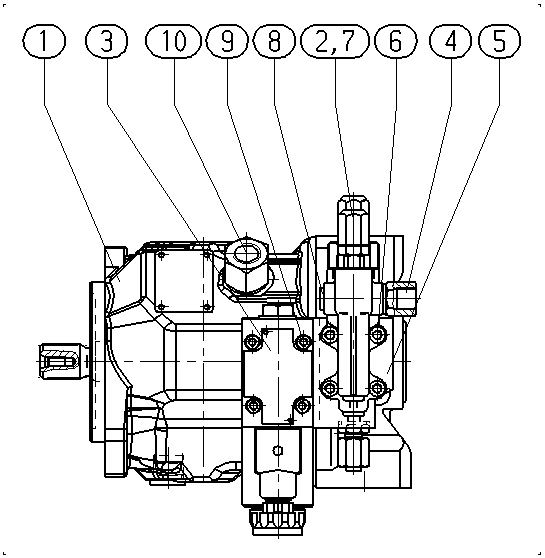

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910929861 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451618 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902410821 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910929857 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
Other versions 20
- R902561288 A A10V O 28 DFR1/31R-VSC12N00
- R910974531 A A10V O 28 DFR1/31R-VSC12N00
- R902467368 A A10V O 28 DFR1/31R-VSC12N00 -S1695
- R902469676 A A10V O 28 DFR1/31R-VSC12N00 -S1708
- R902485982 A A10V O 28 DFR1/31R-VSC12N00 -S2709
- R902467067 A A10V O 28 DFR1/31R-VSC12N00 -SO 52
- R902533917 A A10V O 28 DFR1/31R-VSC12N00 -SO 97
- R910991921 A A10V O 28 DFR1/31R-VSC12N00 -SO420
- R902493005 A A10V O 28 DFR1/31R-VSC12N00 -SO833
- R902453913 AA10VO28DFR1/31R-VSC12N00ESO413
- R902454756 AL A10V O 28 DFR1/31R-VSC12N00
- R902520849 AL A10V O 28 DFR1/31R-VSC12N00
- R902534888 AL A10V O 28 DFR1/31R-VSC12N00
- R992001847 AL A10V O 28 DFR1/31R-VSC12N00
- R902467367 AL A10V O 28 DFR1/31R-VSC12N00 -S1695
- R902490824 AL A10V O 28 DFR1/31R-VSC12N00 -S1708
- R902485981 AL A10V O 28 DFR1/31R-VSC12N00 -S2709
- R902467066 AL A10V O 28 DFR1/31R-VSC12N00 -SO 52
- R902403922 AL A10V O 28 DFR1/31R-VSC12N00 -SO420
- R902493004 AL A10V O 28 DFR1/31R-VSC12N00 -SO833
