Unit · AXIAL-PISTON PUMP
AA10VO45DFR1/31L-VSC61N00-SO108R902434051
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/31L-VSC61N00-SO108, material number R902434051. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 108.
- Number
- R902434051
- Type code
- AA10VO45DFR1/31L-VSC61N00-SO108
- Group
- A10VO 45
- Edition
- 06/2020

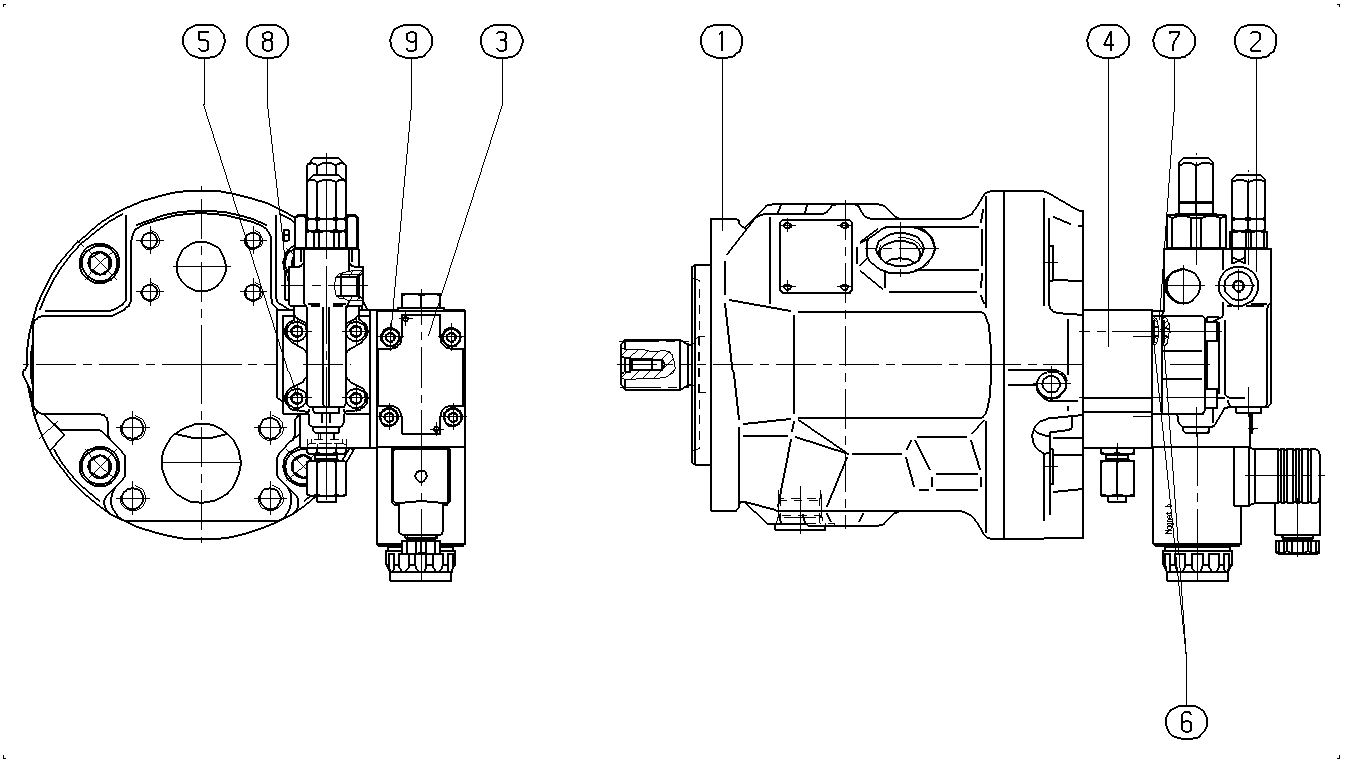

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424543 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451618 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902434052 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902433696 | CONTROL BLOCK | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R910514497 | O-RING | 3 | ||
| R902407954 | INTERMEDIATE PLATE | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 15 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
