Unit · AXIAL-PISTON PUMP

APA10VO45DFR1/31L-PSC11N00-S1543R902435457

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO45DFR1/31L-PSC11N00-S1543, material number R902435457. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 1543.

Number: R902435457
Type code: APA10VO45DFR1/31L-PSC11N00-S1543
Group: A10VO 45
Edition: 06/2020

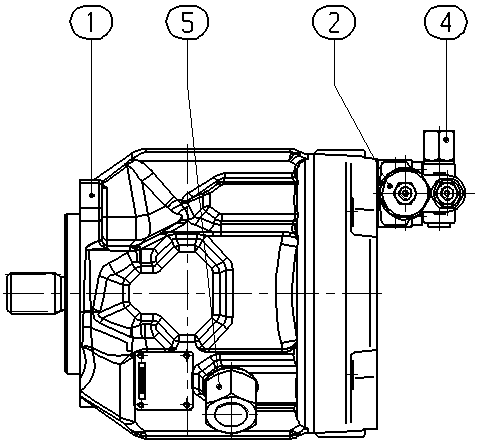

APA10VO45DFR1/31L-PSC11N00-S1543 — Drawing

Number	Name	Qty
R902403471	BASE UNIT Assembly parts list →L	1
R902456299	CONTROL VALVE Assembly parts list →L	1
R910921653	ADAPTER Assembly parts list →L	1
R910792772	ADAPTER Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
