Unit · ROTARY GROUP
TW A10VNO 45 -S1847R902435815
Rotary group Bosch Rexroth series A10VNO, type code TWA10VNO45-S1847, material number R902435815. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Drive shaft: higher (S).
- Number
- R902435815
- Type code
- TW A10VNO 45 -S1847
- Group
- A10VNO 45
- Edition
- 06/2020

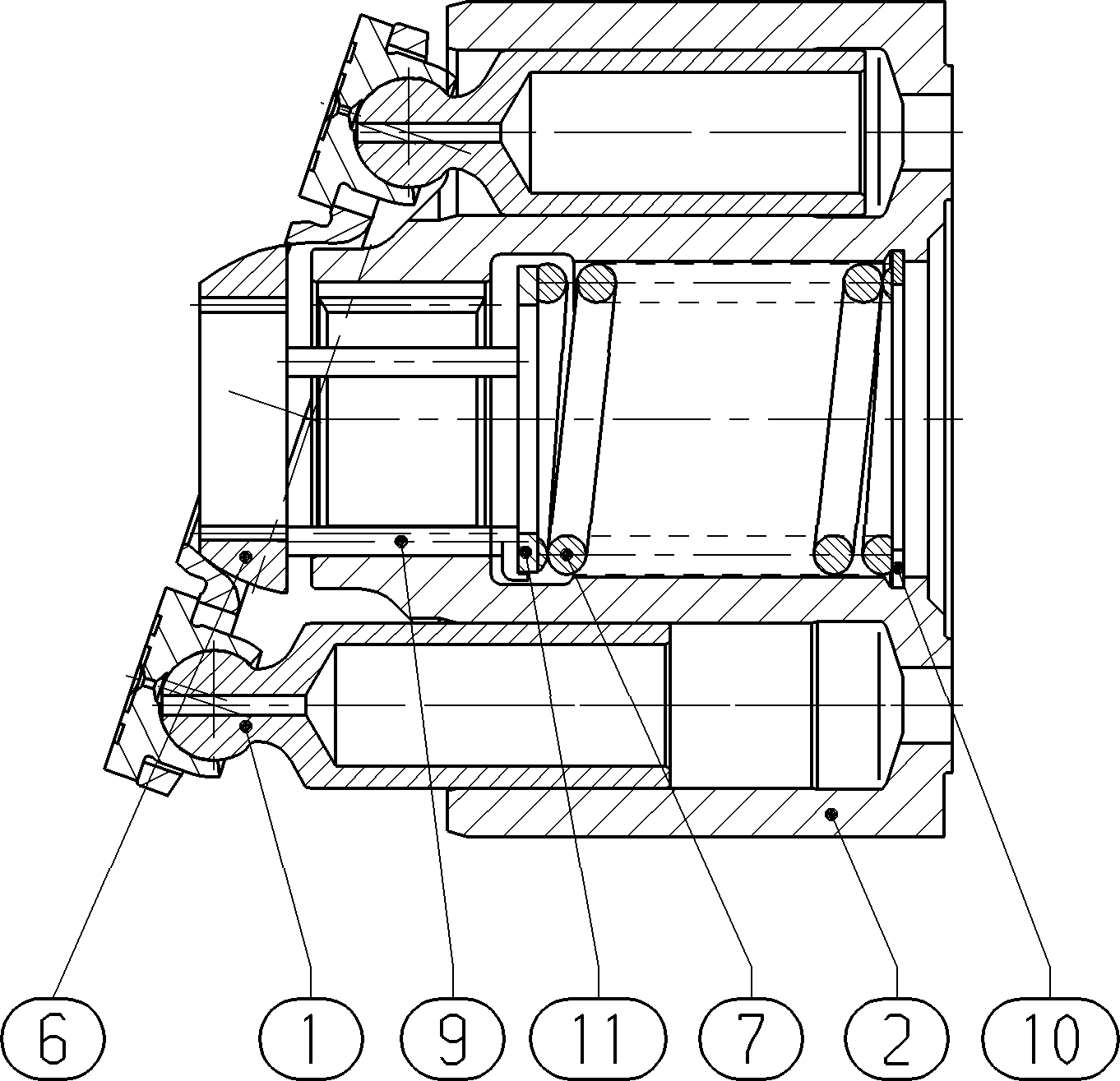

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902554685 | PISTON PAD | 9 | ||
| R902435748 | CYLINDER | 1 | ||
| 4 | R902561493 | RETAINING PLATE | 1 | |
| R902449229 | RETAINING BALL | 1 | ||
| R902408916 | COMPRESSION SPRING | 1 | ||
| R902464162 | PRESSURE PIN | 3 | ||
| R902400716 | V-RING | 1 | ||
| R902400717 | SUPPORTING DISC | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Drive shaft | higher | S |
| Working port | 1847 | 1847 |
