Unit · AXIAL-PISTON PUMP
P A4VSG 250 EM1057/30R-PZB10N009NR902436092
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG250EM1057/30R-PZB10N009N, material number R902436092. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through drives (for mounting options and dimensions: without through drive (N00). Filtration: without filter (N).
- Number
- R902436092
- Type code
- P A4VSG 250 EM1057/30R-PZB10N009N
- Group
- A4VSG 250
- Edition
- 05/2020

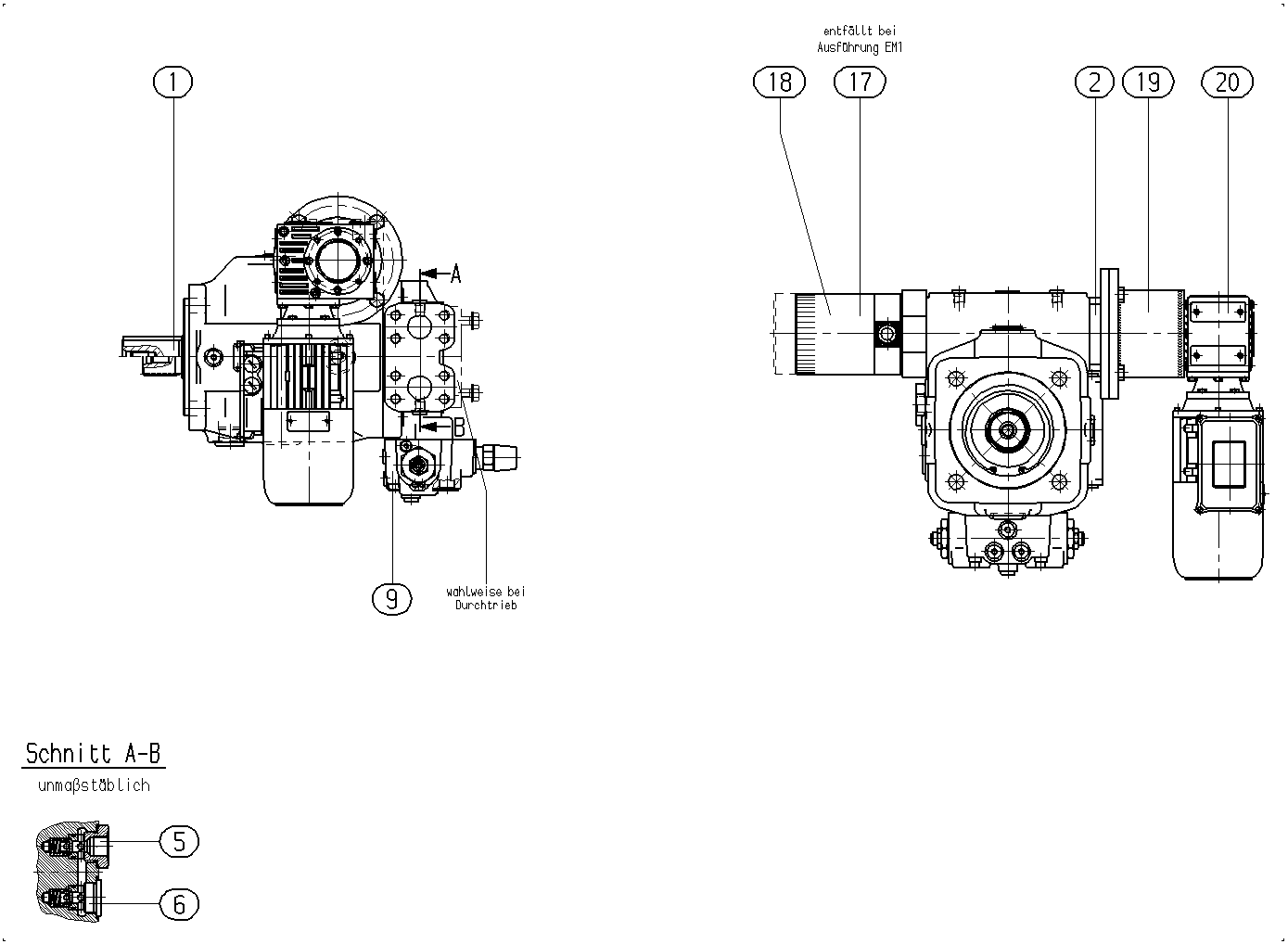

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436172 | BASE UNIT Assembly parts list →L | 1 | ||
| R910988273 | CONTROL Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910917548 | LIMIT SWITCH | 1 | ||
| R910990456 | COUPLING | 1 | ||
| R910990336 | GEAR MOTOR | 1 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 65 | R902602013 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 3, index 0 | 30 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through drives (for mounting options and dimensions | Without through drive | N00 |
| Filtration | Without filter | N |
