Unit · BASE UNIT
G A10VNO 85 DR /53R-VWC07H005G-S1882R902436968
Base unit Bosch Rexroth series A10VNO, type code GA10VNO85DR/53R-VWC07H005G-S1882, material number R902436968. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C).
- Number
- R902436968
- Type code
- G A10VNO 85 DR /53R-VWC07H005G-S1882
- Group
- A10VNO 85
- Edition
- 06/2020

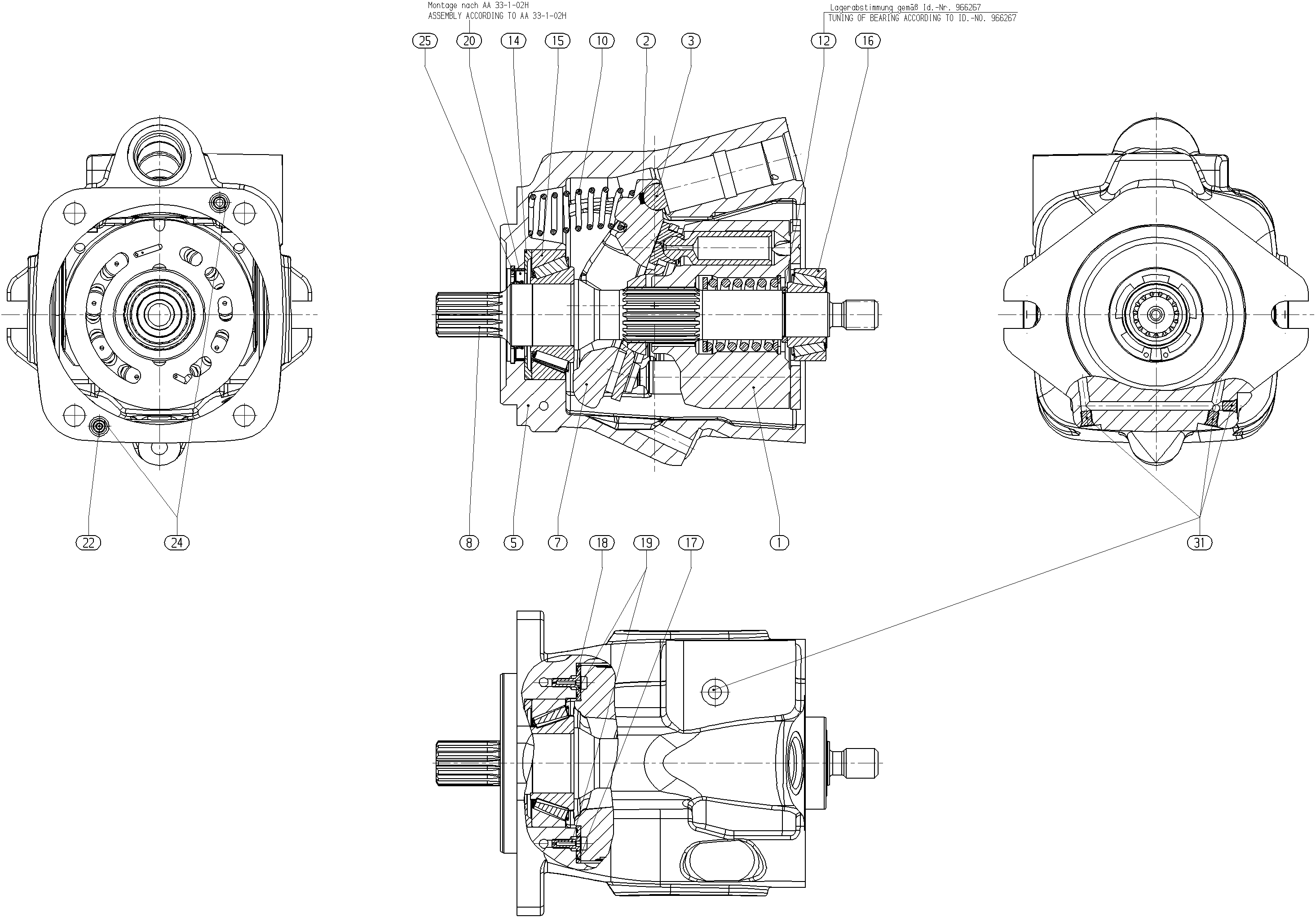

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902452305 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902435507 | PUMP HOUSING | 1 | ||
| R902443755 | SWASH PLATE | 1 | ||
| R902436950 | DRIVE SHAFT | 1 | ||
| R902422349 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910989235 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902424620 | BEARING SHELL | 1 | ||
| R902424619 | BEARING SHELL | 1 | ||
| R902419666 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R909831661 | SHAFT SEALING RING | 1 | ||
| R910968739 | THROTTLE SCREW | 1 | ||
| R910942133 | R-RING | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 7 | 07 |
