Unit · BASE UNIT

GA10VO63DR/53R-VWC07H005G-S1882R902436970

Base unit Bosch Rexroth series A10VO, type code GA10VO63DR/53R-VWC07H005G-S1882, material number R902436970. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller Hydraulic (DR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Special version no. 1882.

Number
R902436970
Type code
GA10VO63DR/53R-VWC07H005G-S1882
Group
A10VO 63
Edition
06/2020

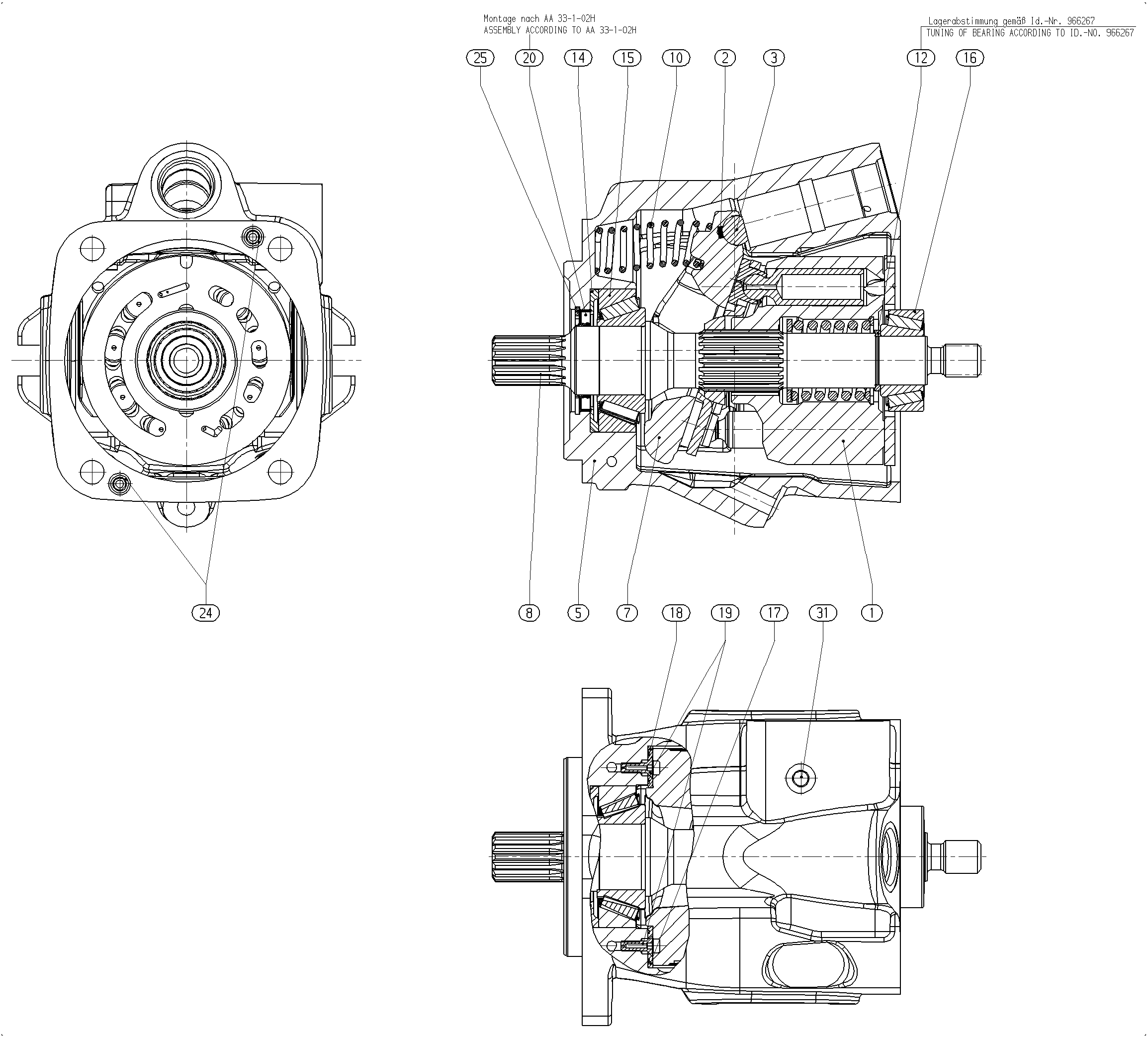

GA10VO63DR/53R-VWC07H005G-S1882 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902454130ROTARY GROUP Assembly parts list →L1
R902473753COMPRESSION SPRING1
R910984014BALL STOP1
R902443924PUMP HOUSING1
R902421902SWASH PLATE1
R902436950DRIVE SHAFT1
R902422349COMPRESSION SPRING1
R910966528ADJUSTMENT SHIM1
R910989235STOP RING1
R910720224TAPERED-ROLLER BEARING1
R910973501TAPERED-ROLLER BEARING1
R902424620BEARING SHELL1
R902424619BEARING SHELL1
R910993660COUNTERSUNK-HEAD SCREW2
R909831661SHAFT SEALING RING1
R910942133R-RING2
R910941918RETAINING RING1
R909831318DOUBLE BREAK-OFF PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)6363
Control devicePressure controller HydraulicDR
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftSame as "U", higher torque; limited suitability for through drive; for mounting optionW
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
