Unit · CONTROL
VA4VSG71EPG/11R-V-S1386R902437367
Control Bosch Rexroth series A4VSG, type code VA4VSG71EPG/11R-V-S1386, material number R902437367. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S).
- Number
- R902437367
- Type code
- VA4VSG71EPG/11R-V-S1386
- Group
- A4VSG 71
- Edition
- 06/2020

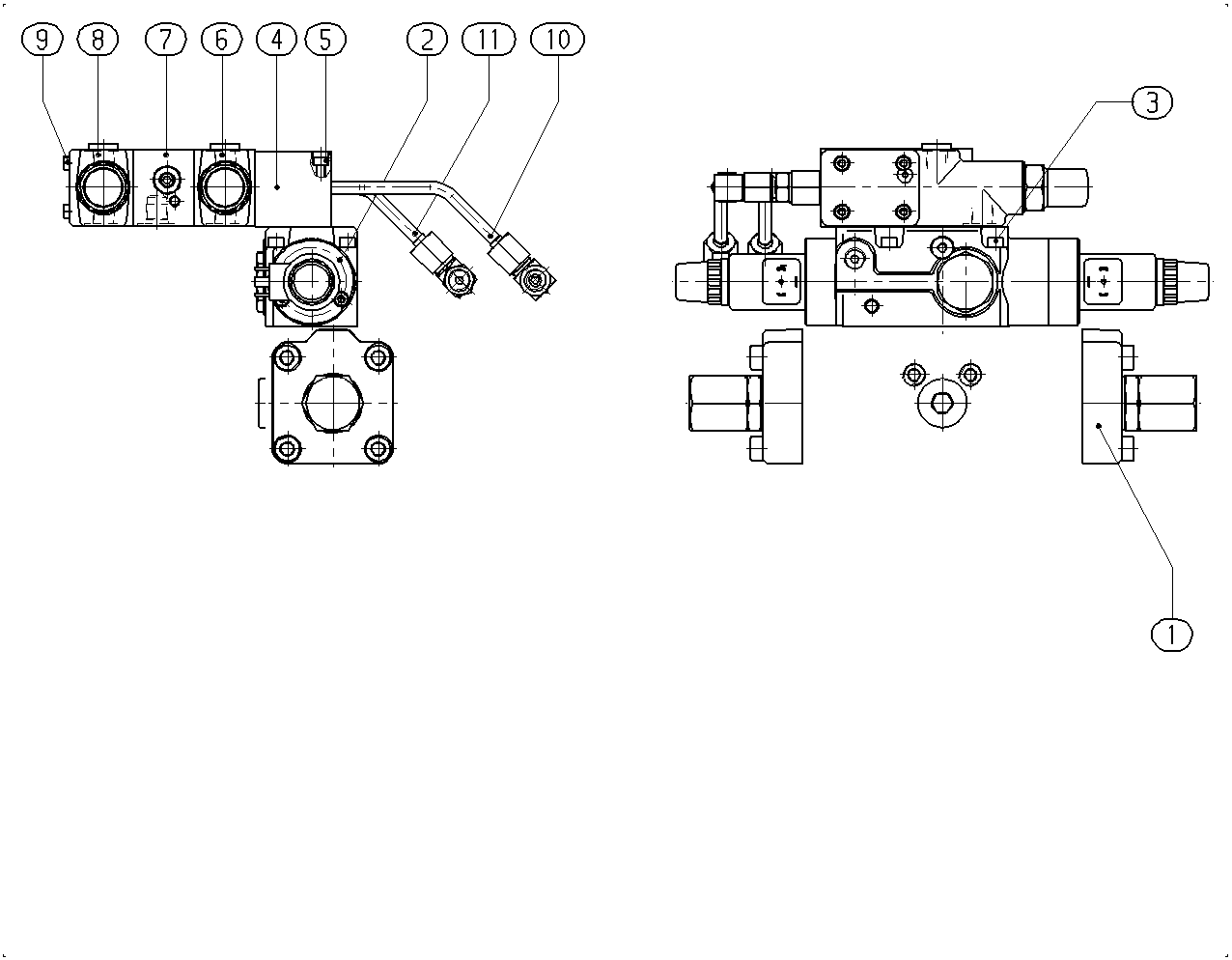

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902436734 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| 5 | R910785105 | SOCKET HEAD CAP SCREW | 4 | |
| 6 | R902418156 | CONTROL VALVE Assembly parts list →L | 1 | |
| R902418070 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| 8 | R902418160 | CONTROL VALVE Assembly parts list →L | 1 | |
| 9 | R910915346 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R902436737 | PIPING Assembly parts list →L | 1 | |
| 11 | R902436740 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
