Unit · AXIAL-PISTON PUMP
A A10VSO 45 FE1 /31R-PSC12K04 -SO712R902437618
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45FE1/31R-PSC12K04-SO712, material number R902437618. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 712.
- Number
- R902437618
- Type code
- A A10VSO 45 FE1 /31R-PSC12K04 -SO712
- Group
- A10VSO 45
- Edition
- 06/2020

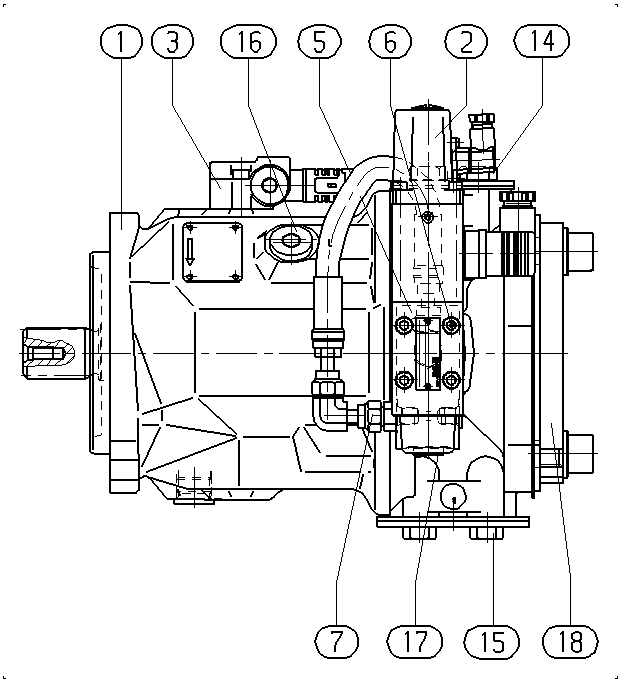

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910979009 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902409295 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R910995697 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902602977 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
