Unit · AXIAL-PISTON PUMP

AHA10VO74DFSR/31L-PSC61N00-S1889R902437623

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO74DFSR/31L-PSC61N00-S1889, material number R902437623. Nominal size: NG 74. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 1889.

Number
R902437623
Type code
AHA10VO74DFSR/31L-PSC61N00-S1889
Group
A10VO 74
Edition
06/2020

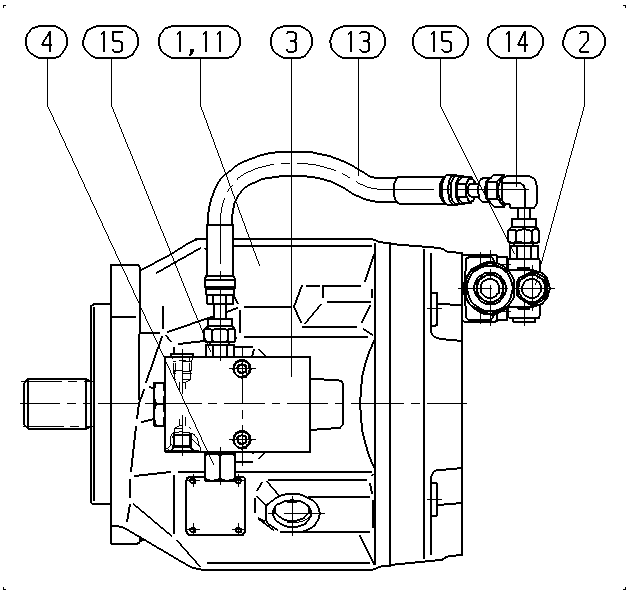

AHA10VO74DFSR/31L-PSC61N00-S1889 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902425113BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902533228CONTROL VALVE Assembly parts list →L1
R910932940ADAPTER Assembly parts list →L1
R902425099POWER DIAGRAM1
R910995599HOSE1
R910994933ELBOW UNION1
R910994759MALE CONNECTOR2

Parameters from the type code

ItemMeaningCode
VersionHigh-speed version (external dimensions are the same as the standard version)H
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive61
Through driveWithout through driveN00

Other versions 1
