Unit · BASE UNIT
G A4VSG 125 'EO' M/30R-PPB10KB3 -SO 86R902437689
Base unit Bosch Rexroth series A4VSG, type code GA4VSG125'EO'M/30R-PPB10KB3-SO86, material number R902437689.
- Number
- R902437689
- Type code
- G A4VSG 125 'EO' M/30R-PPB10KB3 -SO 86
- Group
- A4VSG 125
- Edition
- 07/2020

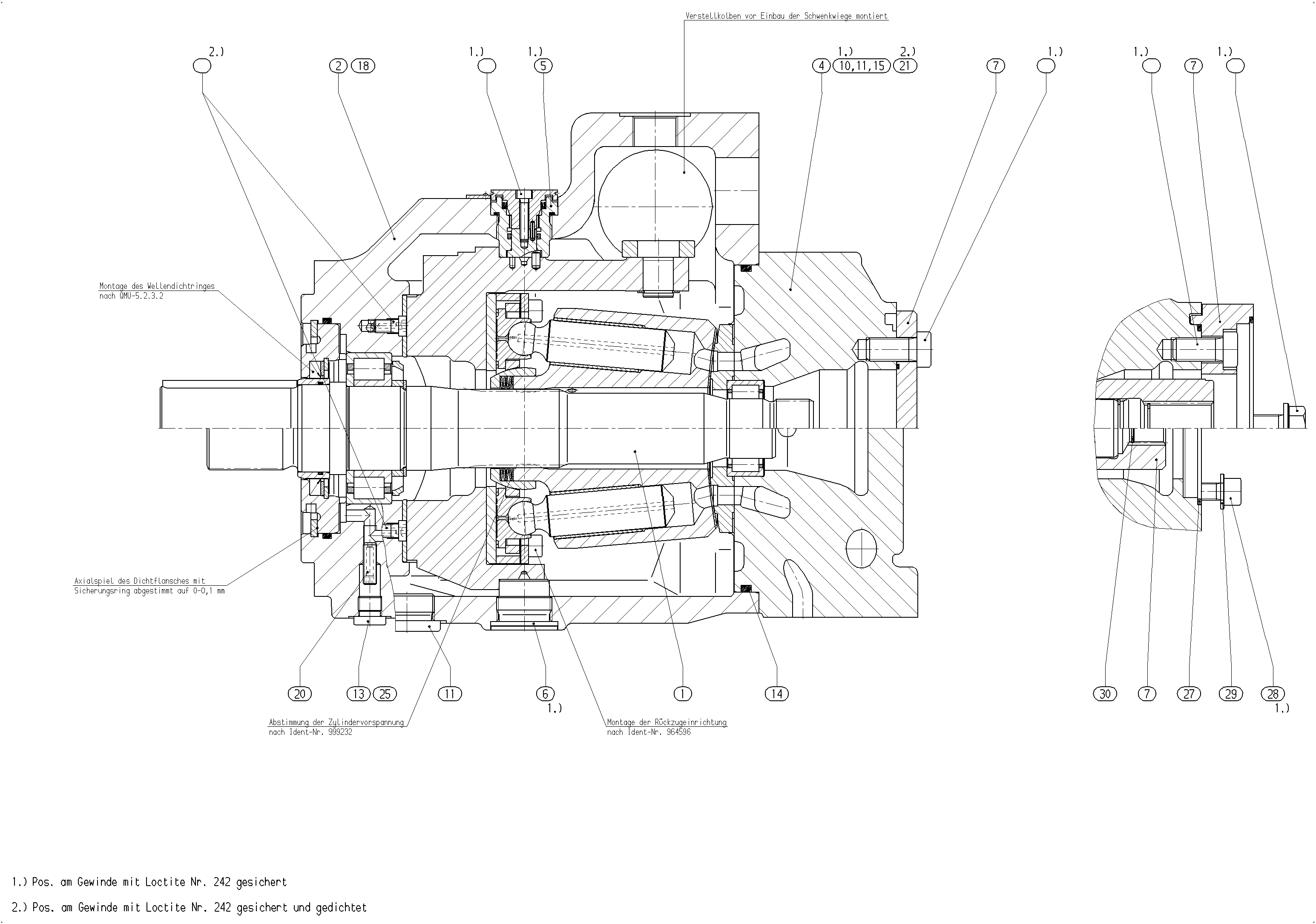

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998926 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902402166 | PUMP HOUSING | 1 | ||
| R910999106 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910996983 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R910991900 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153861 | SCREW PLUGD | 3 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910783854 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979853 | REFERENCE PLATE | 1 |
