Unit · AXIAL-PISTON PUMP
A A10V O140 DFR /31R-PQC62N00 -SO 23R902438000
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFR/31R-PQC62N00-SO23, material number R902438000. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 23.
- Number
- R902438000
- Type code
- A A10V O140 DFR /31R-PQC62N00 -SO 23
- Group
- A10VO 140
- Edition
- 06/2020

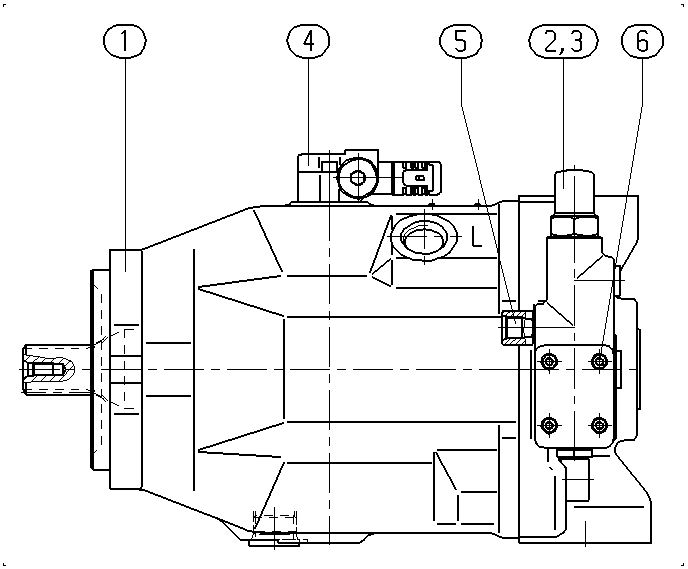

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902437693 | BASE UNIT Assembly parts list →L | 1 | ||
| R910920180 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920184 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910984004 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With flow controller X-T open Hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
