Unit · BASE UNIT
GH A10V O100 OV /31R-VSC13K68 -S1900R902438341
Base unit Bosch Rexroth series A10VO, type code GHA10VO100OV/31R-VSC13K68-S1900, material number R902438341. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1900.
- Number
- R902438341
- Type code
- GH A10V O100 OV /31R-VSC13K68 -S1900
- Group
- A10VO 100
- Edition
- 06/2020

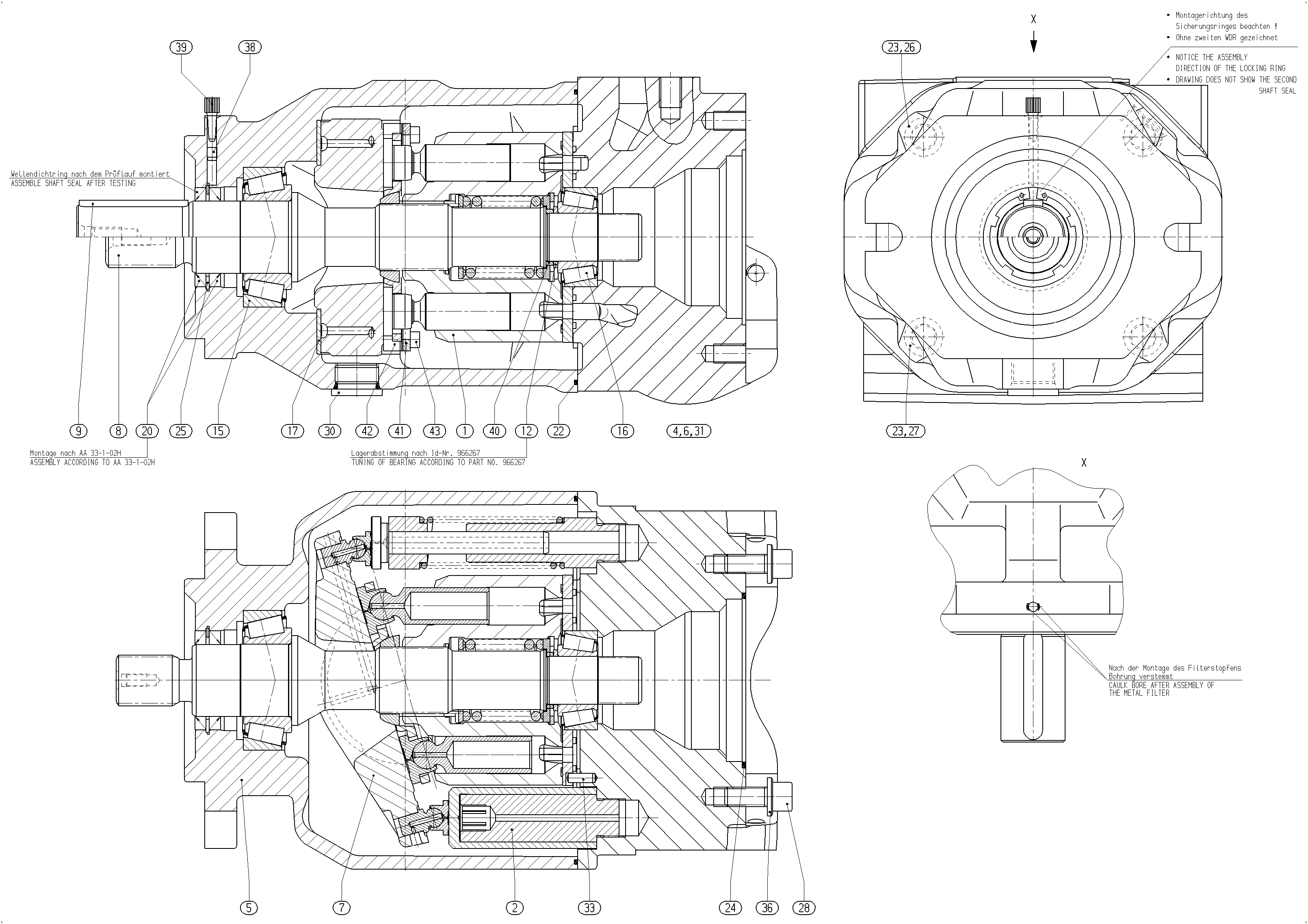

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466609 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910913785 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910985292 | CHECK VALVE | 1 | ||
| R902490599 | PUMP HOUSING | 1 | ||
| R902439313 | CONNECTION PLATE | 1 | ||
| R902435871 | SWASH PLATE | 1 | ||
| R902463831 | DRIVE SHAFT | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 2 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 2 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 | ||
| R902570108 | SEGMENT | 2 | ||
| R902432711 | SPACER SLEEVE | 4 | ||
| R902530616 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
