Unit · AXIAL-PISTON PUMP

AH A10V O 74 DFSR/31L-PRC92K07R902438356

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO74DFSR/31L-PRC92K07, material number R902438356. Nominal size: NG 74. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07).

Number
R902438356
Type code
AH A10V O 74 DFSR/31L-PRC92K07
Group
A10VO 74
Edition
06/2020

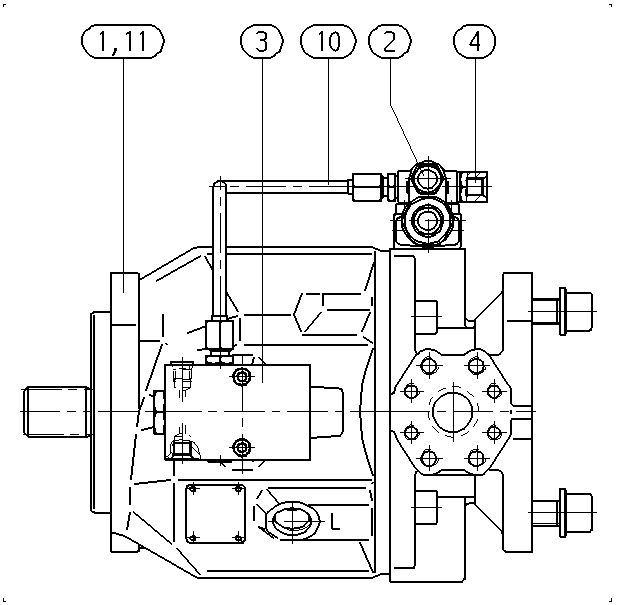

AH A10V O 74 DFSR/31L-PRC92K07 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902438357BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902533228CONTROL VALVE Assembly parts list →L1
R910932940ADAPTER Assembly parts list →L1
R910963344PIPING Assembly parts list →L1
R902438301POWER DIAGRAM1

Parameters from the type code

ItemMeaningCode
VersionHigh-speed version (external dimensions are the same as the standard version)H
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Drive shaftSimilar to shaft "S" however for higher torqueR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom92
Through drive127-2 (C) 1 1/4 in 14T 12/24DPK07
