Unit · AXIAL-PISTON PUMP

A A10V O140 DR /31R-VSD12K07R902438702

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DR/31R-VSD12K07, material number R902438702. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller Hydraulic (DR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07).

Number
R902438702
Type code
A A10V O140 DR /31R-VSD12K07
Group
A10VO 140
Edition
06/2020

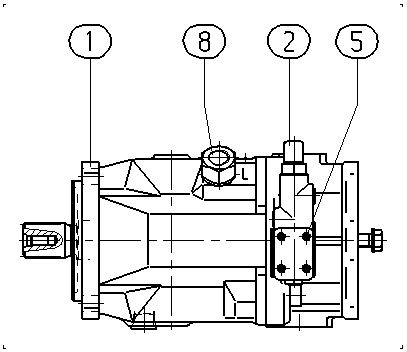

A A10V O140 DR /31R-VSD12K07 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902438626BASE UNIT Assembly parts list →L1
R910942826CONTROL VALVE Assembly parts list →L1
R910785105SOCKET HEAD CAP SCREW4
R910913483ADAPTER Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)140140
Control devicePressure controller HydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2/4-holeD
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through drive127-2 (C) 1 1/4 in 14T 12/24DPK07
