Unit · AXIAL-PISTON PUMP
A A10V O 60ED 73/52L-VKC12K04T -SO200R902438787
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60ED73/52L-VKC12K04T-SO200, material number R902438787. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft ISO 3019-1 not for through drive (K). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04).
- Number
- R902438787
- Type code
- A A10V O 60ED 73/52L-VKC12K04T -SO200
- Group
- A10VO 60
- Edition
- 06/2020

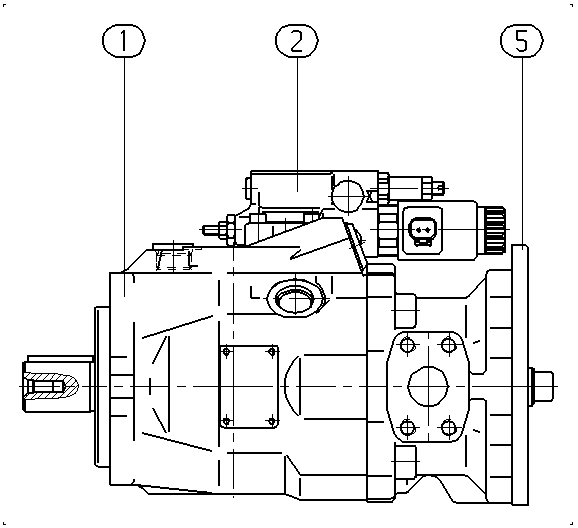

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902437900 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533338 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469010 | SEALING COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft ISO 3019-1 not for through drive | K |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
