Unit · AXIAL-PISTON MOTOR
A A10F D 35 /52W-VSW81B122GR902438835
Axial piston motor Bosch Rexroth series A10FD, type code AA10FD35/52W-VSW81B122G, material number R902438835.
- Number
- R902438835
- Type code
- A A10F D 35 /52W-VSW81B122G
- Group
- A10FD 35
- Edition
- 07/2021

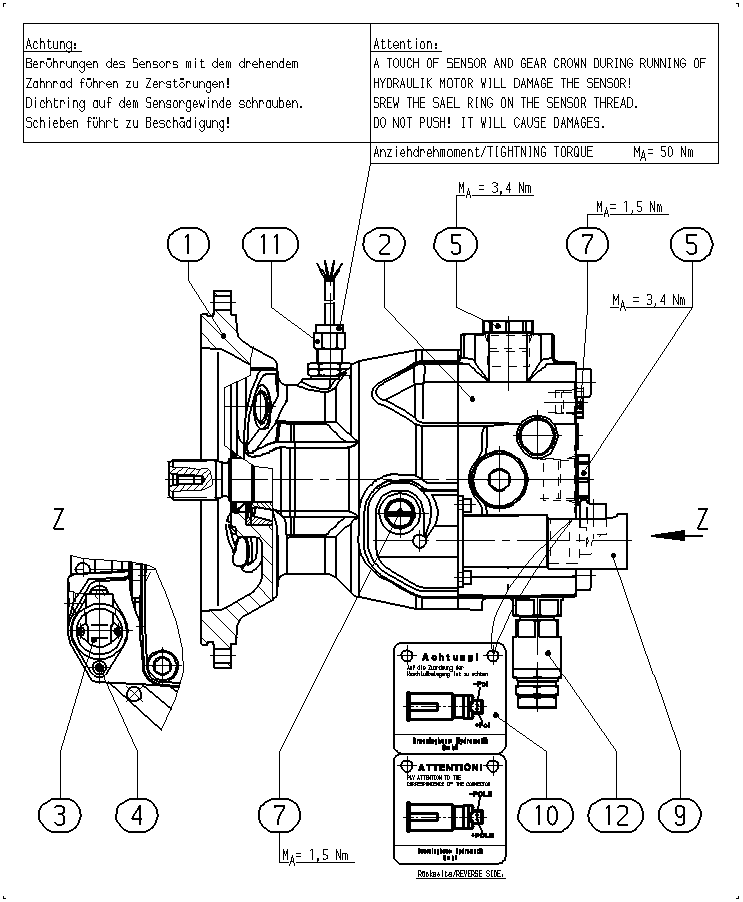

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902438395 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R902438148 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 3 | R971060477 | PRESSURE RELIEF VALVE | 1 | |
| R910109215 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603191 | SEAL SCREW | 3 | ||
| R902602015 | SEAL SCREW | 2 | ||
| R902544506 | PROTECTIVE TUBE | 1 | ||
| R902416144 | REFERENCE PLATE | 1 | ||
| 11 | R902443637 | HALL-SPEED SENSOR | 1 | |
| R930076175 | SCREW-IN CARTRIDGE VALVE | 2 |
