Unit · AXIAL-PISTON PUMP
PA4VSG71EM4256/10R-PPB10K019N-S1516R902439056
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG71EM4256/10R-PPB10K019N-S1516, material number R902439056. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Valves: SDVB valve block mounted (9). Filtration: without filter (N). Special version no. 1516.
- Number
- R902439056
- Type code
- PA4VSG71EM4256/10R-PPB10K019N-S1516
- Group
- A4VSG 71
- Edition
- 12/2019

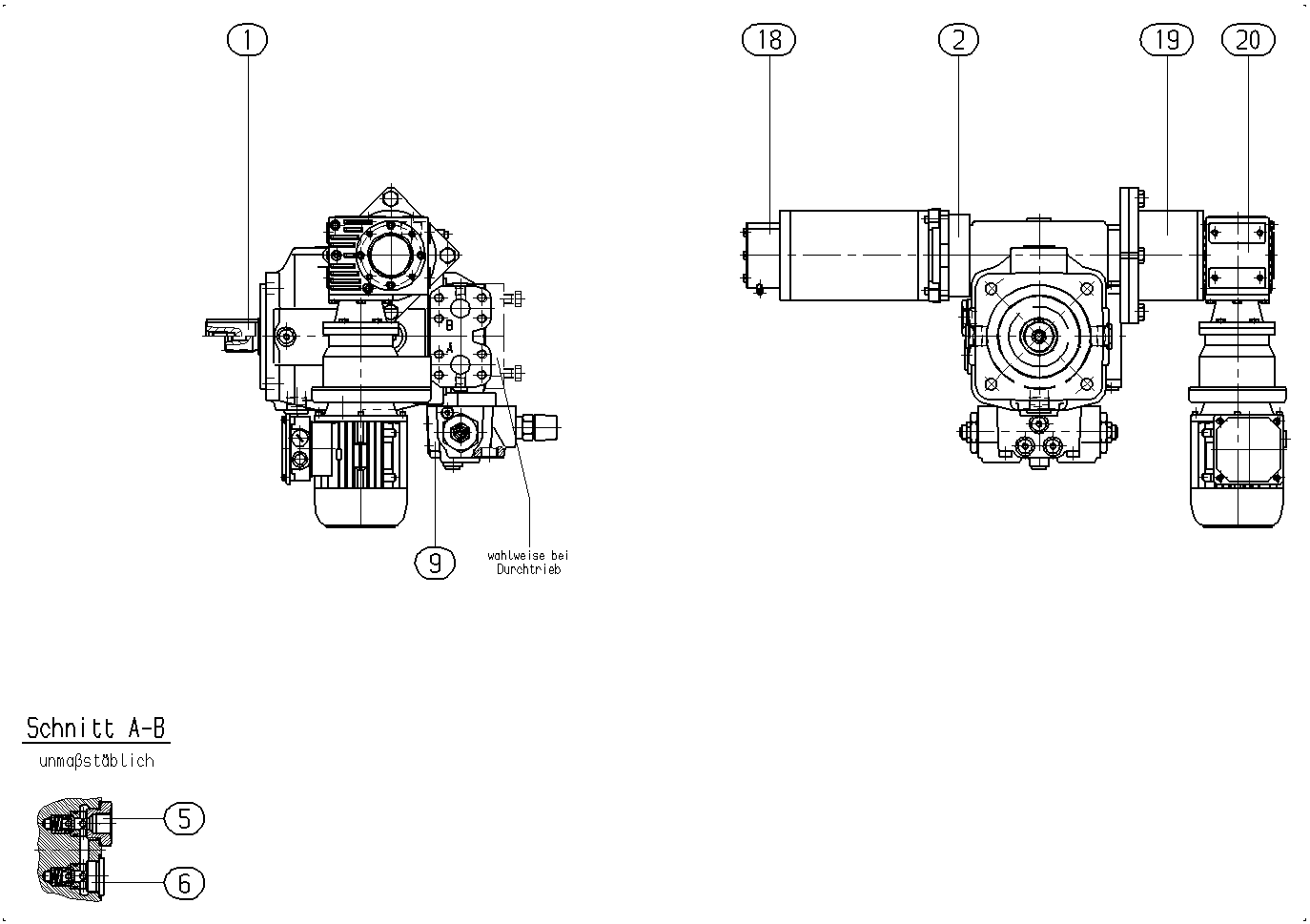

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902421596 | BASE UNIT Assembly parts list →L | 1 | ||
| R910919676 | CONTROL Assembly parts list →L | 1 | ||
| R910925136 | VALVE MOUNTING KIT | 1 | ||
| R910925179 | VALVE MOUNTING KIT | 1 | ||
| R910927508 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R910927749 | LIMIT SWITCH | 1 | ||
| R910993567 | COUPLING | 1 | ||
| R902439038 | GEAR MOTOR | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 2 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 64 | R902602010 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902418324 | FLANGE COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
