Unit · AXIAL-PISTON PUMP
AA10VO60ED72/52L-PSR62K68TR902439237
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60ED72/52L-PSR62K68T, material number R902439237. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: parallel keyed shaft DIN 6885 not for through drive (P). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68).
- Number
- R902439237
- Type code
- AA10VO60ED72/52L-PSR62K68T
- Group
- A10VO 60
- Edition
- 06/2020

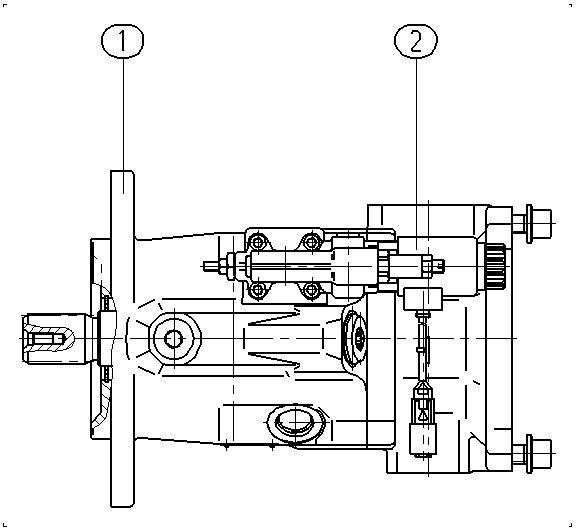

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439225 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533338 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Parallel keyed shaft DIN 6885 not for through drive | P |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
