Unit · AXIAL-PISTON PUMP

A A10V O 28ED 72/52R-VSC12K68P -S1948R902439955

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28ED72/52R-VSC12K68P-S1948, material number R902439955. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 1948.

Number
R902439955
Type code
A A10V O 28ED 72/52R-VSC12K68P -S1948
Group
A10VO 28
Edition
06/2020

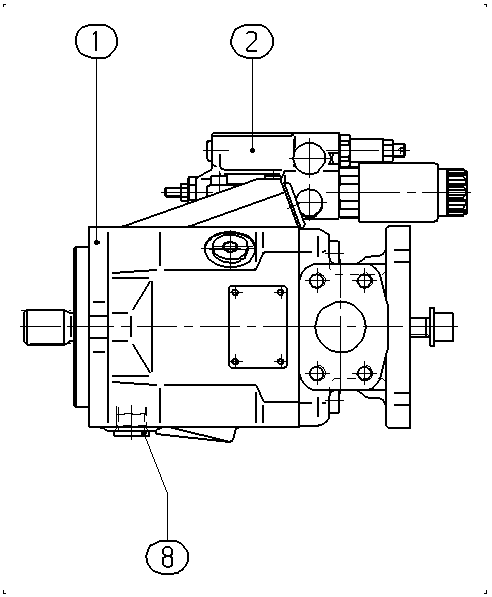

A A10V O 28ED 72/52R-VSC12K68P -S1948 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902439818BASE UNIT Assembly parts list →L1
R902533400CONTROL VALVE Assembly parts list →L1
R910901969SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)2828
Control deviceelectric U = 24 VED72
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 10
