Unit · AXIAL-PISTON PUMP
AL A10V O 85 DFR1/52L-VQQ19N00 -S1772R902443428
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85DFR1/52L-VQQ19N00-S1772, material number R902443428. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Through drive: without through drive (N00). Special version no. 1772.
- Number
- R902443428
- Type code
- AL A10V O 85 DFR1/52L-VQQ19N00 -S1772
- Group
- A10VO 85
- Edition
- 06/2020

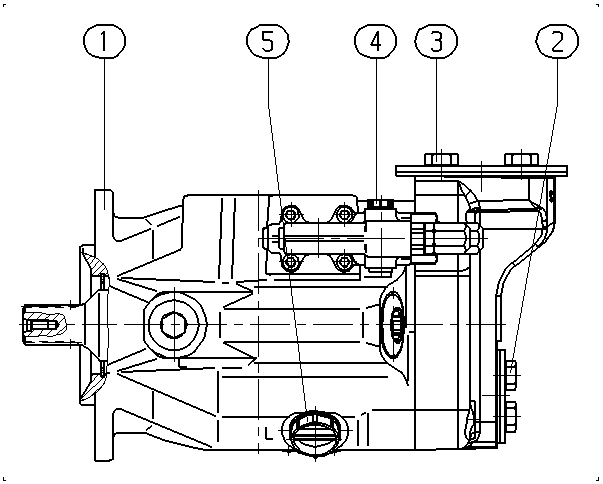

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902445258 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Through drive | Without through drive | N00 |
