Unit · POMPA OSIOWO-TŁOKOWA
A AA10VSO 71DFLR1/31R-PKC92K01 -SO 52R902443438
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO71DFLR1/31R-PKC92K01-SO52, material number R902443438. Nominal size: NG 71. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 52.
- Number
- R902443438
- Type code
- A AA10VSO 71DFLR1/31R-PKC92K01 -SO 52
- Group
- A10VSO 71
- Edition
- 06/2020

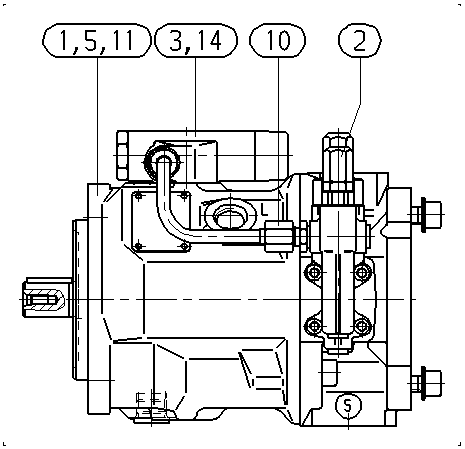

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990533 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R902490090 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902533217 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R910917868 | PIERŚCIEŃ OGRANICZAJĄCY | 1 | ||
| R910963807 | ORUROWANIE Assembly parts list →L | 1 | ||
| R902426961 | SCHEMAT ZASILANIA | 1 | ||
| R909154478 | KOREK GWINTOWANY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
