Unit · AXIAL-PISTON PUMP

AL A10VSO 18 DFR1/31L-PPA12N00 -S1413R902443443

Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DFR1/31L-PPA12N00-S1413, material number R902443443. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 1413.

Number
R902443443
Type code
AL A10VSO 18 DFR1/31L-PPA12N00 -S1413
Group
A10VSO 18
Edition
06/2020

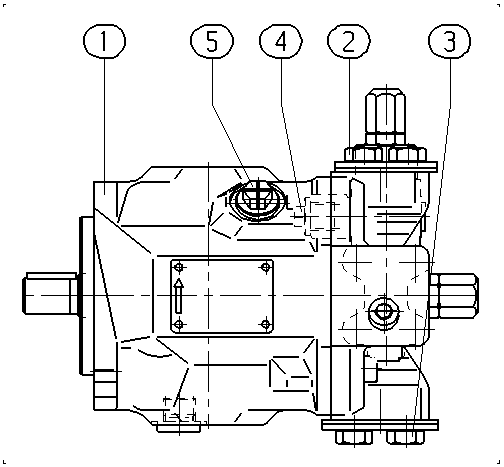

AL A10VSO 18 DFR1/31L-PPA12N00 -S1413 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902422519AXIAL-PISTON PUMP Assembly parts list →L1
R902400574FLANGE COVER1
R902400578FLANGE COVER1
R902602008SEAL SCREW1
R902602009SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)1818
Control devicewith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00
