Unit · BASE UNIT
G A10VNO 28 OV /52L-HRC40N00 -S1370R902443601
Base unit Bosch Rexroth series A10VNO, type code GA10VNO28OV/52L-HRC40N00-S1370, material number R902443601. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1370.
- Number
- R902443601
- Type code
- G A10VNO 28 OV /52L-HRC40N00 -S1370
- Group
- A10VNO 28
- Edition
- 06/2020

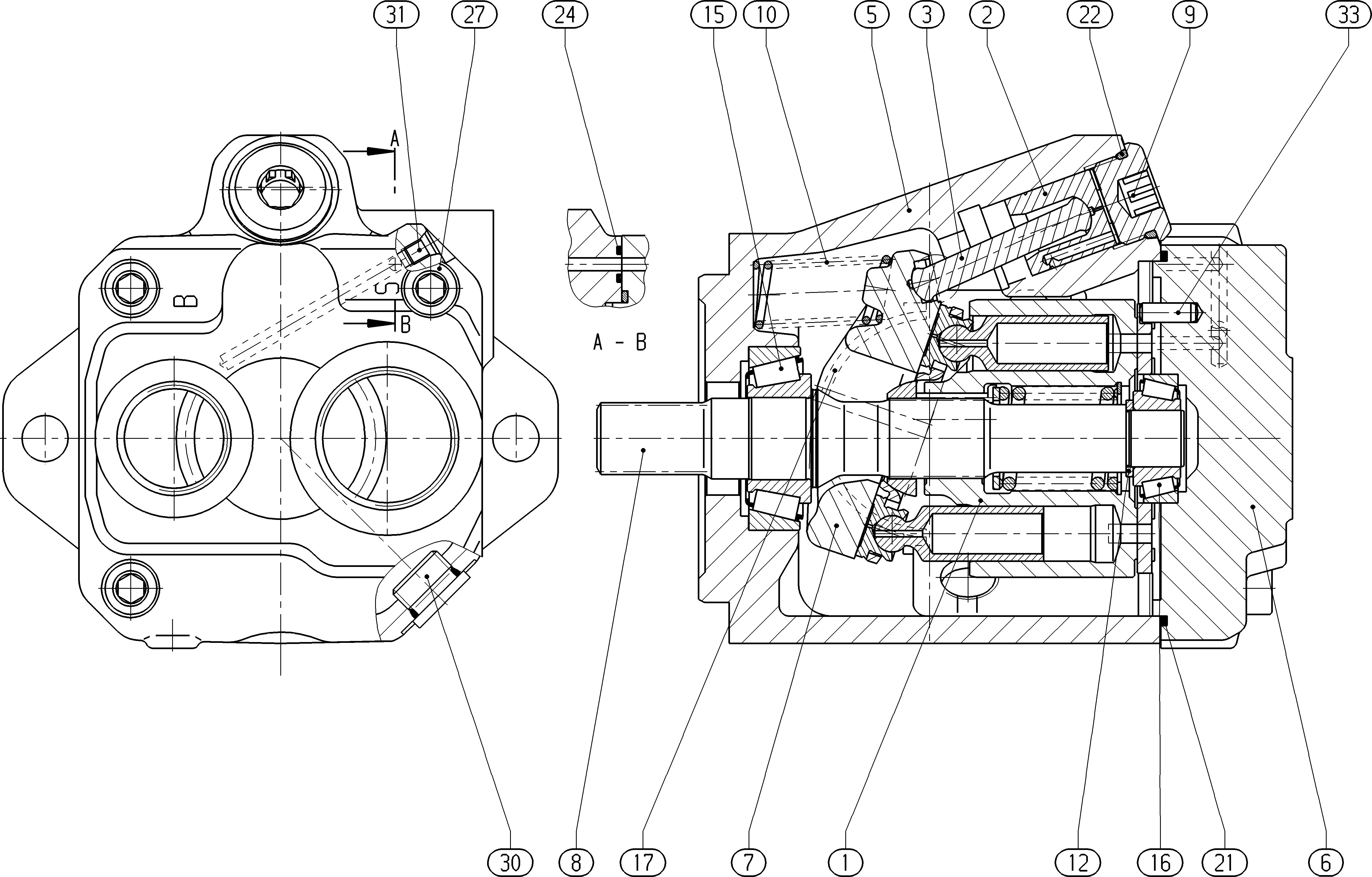

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902407267 | PISTON ROD | 1 | ||
| R902429837 | PUMP HOUSING | 1 | ||
| R902439033 | CONNECTION PLATE | 1 | ||
| R902443525 | SWASH PLATE | 1 | ||
| R902401972 | DRIVE SHAFT | 1 | ||
| R902447687 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910947314 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R902650289 | O-RINGD | 1 | ||
| R902650290 | O-RINGD | 1 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 40 | 40 |
| Through drive | Without through drive | N00 |
