Unit · AXIAL-PISTON PUMP

A A10V O100 FE1 /31L-PSC12K68 -SO712R902443608

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100FE1/31L-PSC12K68-SO712, material number R902443608. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 712.

Number
R902443608
Type code
A A10V O100 FE1 /31L-PSC12K68 -SO712
Group
A10VO 100
Edition
06/2020

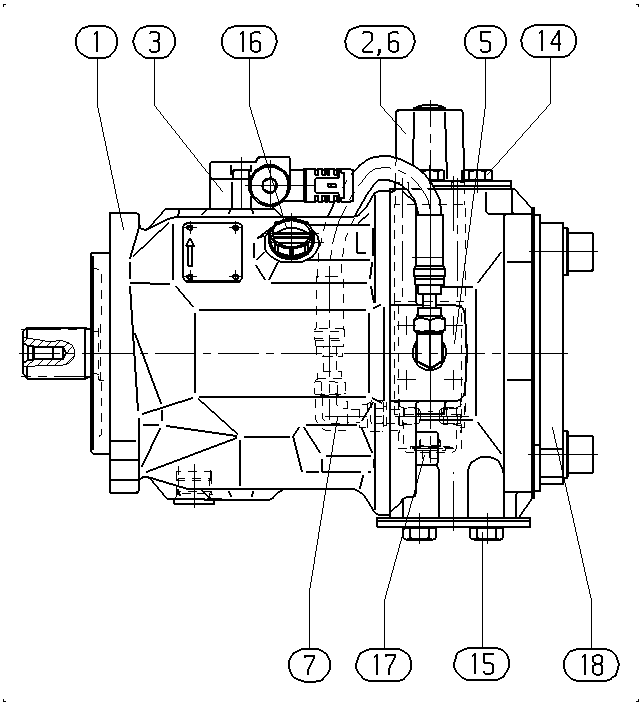

A A10V O100 FE1 /31L-PSC12K68 -SO712 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902443589BASE UNIT Assembly parts list →L1
R902424554PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L1
R910947340INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R902409295INTERMEDIATE PLATE Assembly parts list →L1
R910914728SOCKET HEAD CAP SCREW4
R910995696HOSE ASSEMBLY Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902603191SEAL SCREW1
R909831377GUARD PLUG1
R902602977FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)100100
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
