Unit · AXIAL-PISTON PUMP

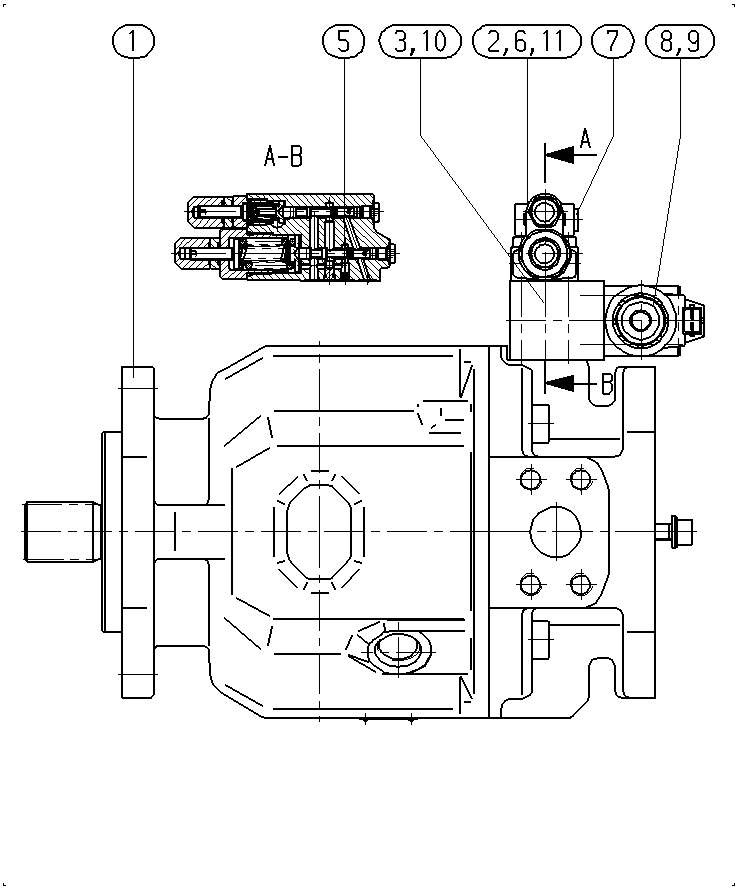

AH A10V O100 DFR1/31L-PSC12K01 -S1959R902443665
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO100DFR1/31L-PSC12K01-S1959, material number R902443665. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 1959.
- Number
- R902443665
- Type code
- AH A10V O100 DFR1/31L-PSC12K01 -S1959
- Group
- A10VO 100
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902425002 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902493020 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R902434574 | INTERMEDIATE PLATE | 1 | |
| 5 | R902540856 | NOZZLE | 1 | |
| 6 | R910359491 | SOCKET HEAD CAP SCREW | 4 | |
| R910764647 | SCREW PLUG | 1 | ||
| 8 | R902650786 | DIRECTIONAL SPOOL VALVE | 1 | |
| 9 | R910785105 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R902417268 | SEAL | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
