Unit · AXIAL-PISTON PUMP
AA10VO60DFR5/52R-PRC19N00-SO834R902443779
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR5/52R-PRC19N00-SO834, material number R902443779. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 834.
- Number
- R902443779
- Type code
- AA10VO60DFR5/52R-PRC19N00-SO834
- Group
- A10VO 60
- Edition
- 06/2020

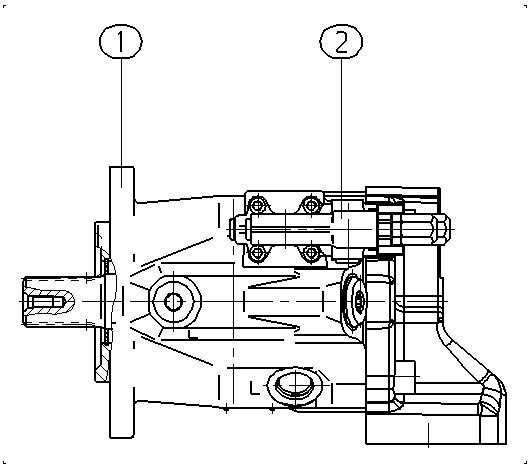

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902443722 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450440 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
