Unit · AXIAL-PISTON MOTOR
AA10VM10DG/52W-PKC64N000-S1975R902444471
Axial piston motor Bosch Rexroth series A10VM, type code AA10VM10DG/52W-PKC64N000-S1975, material number R902444471. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control direct operated, external control pressure supply without on/off valve (DG). Direction of rotation: viewed on drive shaft bi-directional (W). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Valves: without valve (0).
- Number
- R902444471
- Type code
- AA10VM10DG/52W-PKC64N000-S1975
- Group
- A10VM 10
- Edition
- 06/2020

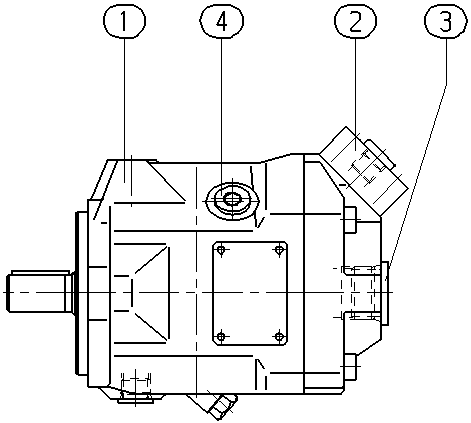

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451820 | BASE UNIT Assembly parts list →L | 1 | ||
| R910921874 | PLATE Assembly parts list →L | 1 | ||
| R909154480 | SCREW PLUG | 1 | ||
| R909153371 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 10 | 10 |
| Control devices | Two-point control direct operated, external control pressure supply without on/off valve | DG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Valves | Without valve | 0 |
