Unit · REGULATOR
R A4VS 250/355 DFE1 /30R VR902444857
Control Bosch Rexroth series A4VS, type code RA4VS250/355DFE1/30RV, material number R902444857.
- Number
- R902444857
- Type code
- R A4VS 250/355 DFE1 /30R V
- Group
- A4VS 250
- Edition
- 07/2020

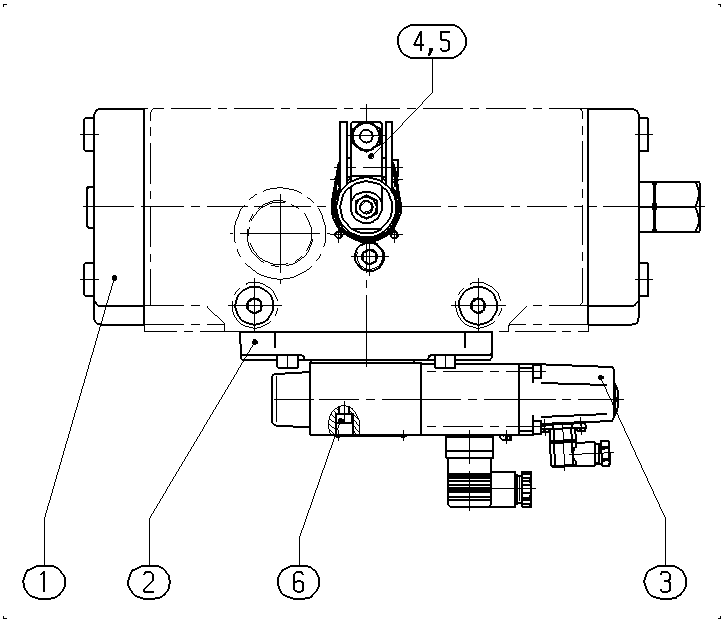

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902443353 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902443354 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R900703811 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910904040 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 4 | ||
| 8 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| 9 | R902650462 | EQUIPMENT SOCKET | 1 |
