Unit · AXIAL-PISTON PUMP
A A10VSO140 DFR /31L-VPB12G40R902445256
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFR/31L-VPB12G40, material number R902445256. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).
- Number
- R902445256
- Type code
- A A10VSO140 DFR /31L-VPB12G40
- Group
- A10VSO 140
- Edition
- 06/2020

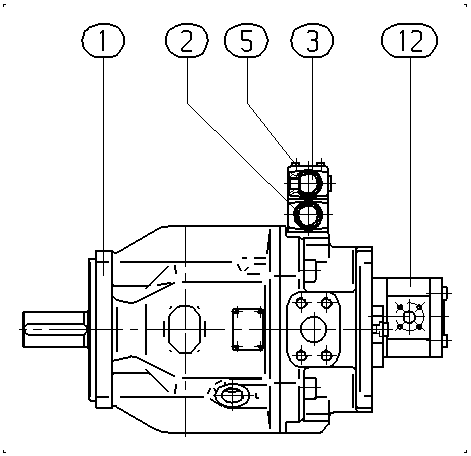

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940871 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910931668 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| 0510525371 | HYDRAULIC GEAR PUMPL | 1 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
