Unit · AXIAL-PISTON PUMP
AL A10VNO 41 DFR1/52R-HTC40N00 -S2020R902445441
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO41DFR1/52R-HTC40N00-S2020, material number R902445441. Nominal size: NG 41. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 2020.
- Number
- R902445441
- Type code
- AL A10VNO 41 DFR1/52R-HTC40N00 -S2020
- Group
- A10VNO 41
- Edition
- 06/2020

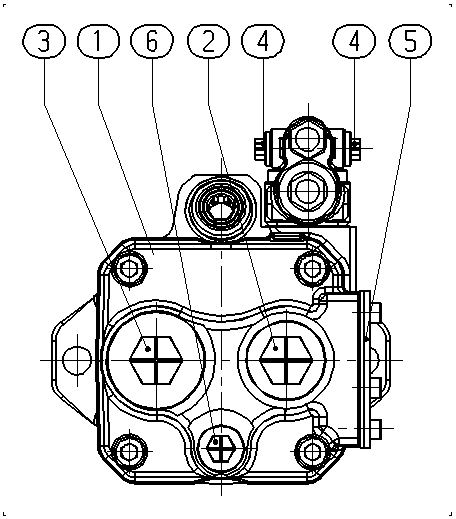

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902446421 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602013 | SEAL SCREW | 1 | ||
| R902602206 | SEAL SCREW | 1 | ||
| R902602007 | SEAL SCREW | 2 | ||
| R902446272 | FLANGE COVER Assembly parts list →L | 1 | ||
| R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 41 | 41 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 40 | 40 |
| Through drive | Without through drive | N00 |
