Unit · AXIAL-PISTON PUMP
AA10VSO140DRG/32R-VSD32U68-S2100R902445697
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DRG/32R-VSD32U68-S2100, material number R902445697. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32). Through drive: only for port plate 22 and 32, 101-2 (B) 7/8 in 13T 16/32DP (U68). Rotary group version: high-speed with port plate version 22U (S).
- Number
- R902445697
- Type code
- AA10VSO140DRG/32R-VSD32U68-S2100
- Group
- A10VSO 140
- Edition
- 06/2020

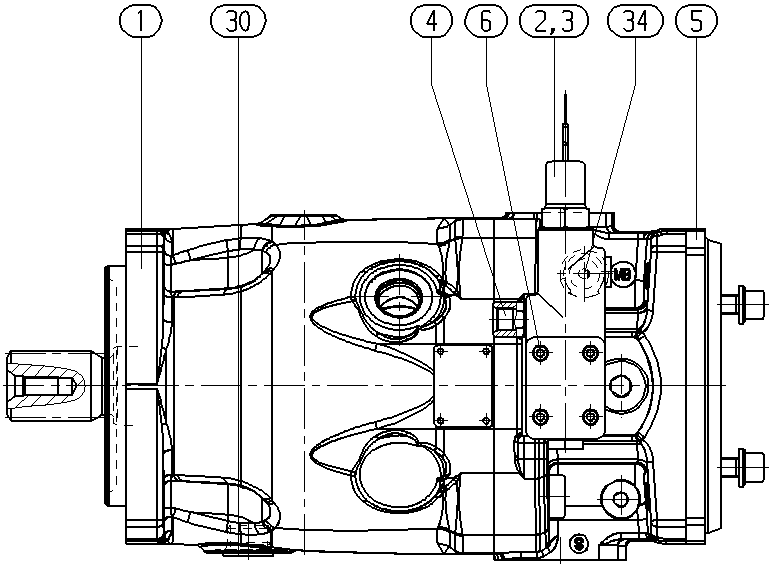

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902450284 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450970 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902450972 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910984005 | ADAPTER Assembly parts list →L | 1 | ||
| R902447044 | ATTACHMENT KIT | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping | 32 |
| Through drive | Only for port plate 22 and 32, 101-2 (B) 7/8 in 13T 16/32DP | U68 |
| Rotary group version | High-speed with port plate version 22U | S |
