Unit · AXIAL-PISTON PUMP

AL A10V O 45 DFR1/31L-PWC12L30 -SO413R902445969

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFR1/31L-PWC12L30-SO413, material number R902445969. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Special version no. 413.

Number
R902445969
Type code
AL A10V O 45 DFR1/31L-PWC12L30 -SO413
Group
A10VO 45
Edition
06/2020

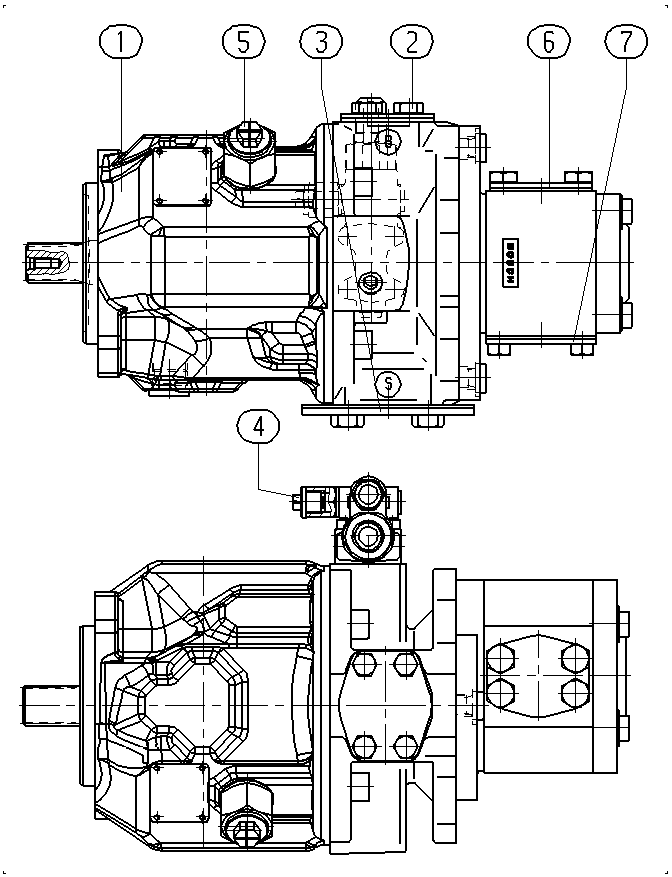

AL A10V O 45 DFR1/31L-PWC12L30 -SO413 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902445970AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902602008SEAL SCREW1
R902602011SEAL SCREW1
R902400574FLANGE COVER1
R902400578FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Drive shaftSame as "U", higher torque; limited suitability for through drive; for mounting optionW
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
