Unit · AXIAL-PISTON PUMP

ALA10VO110DRS/32L-VWD11N00-S2017*PT*R902446462

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO110DRS/32L-VWD11N00-S2017*PT*, material number R902446462. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: same as shaft "U", but for higher torque, limited suitability for through drive (W). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: according to ISO 6162 SAE flange ports at rear, metric fastening thread (not for through drive, "N00" only) (11). Through drive: without through drive (N00).

Number
R902446462
Type code
ALA10VO110DRS/32L-VWD11N00-S2017*PT*
Group
A10VO 110
Edition
06/2020

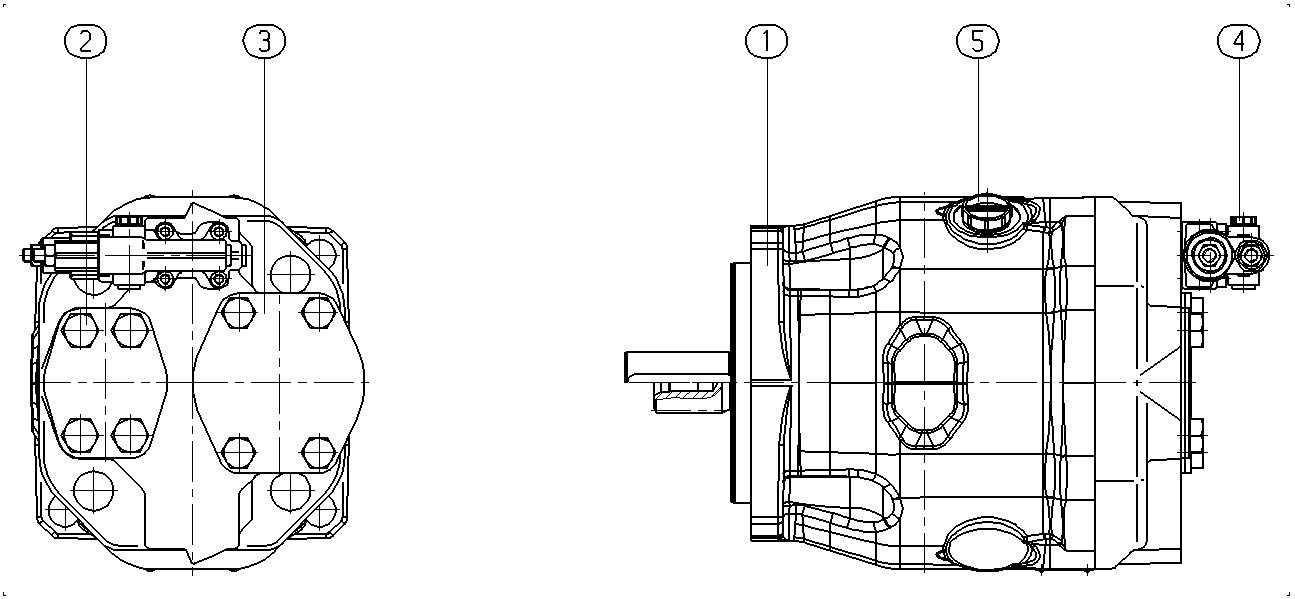

ALA10VO110DRS/32L-VWD11N00-S2017*PT* — Drawing
Pos.NumberNameQtyAdd to inquiry
R902447720AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602014SEAL SCREW1
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 barA10V
Operating modePump, open circuitO
Sizes (NG)110110
Control deviceswith flow controller X-T plugged with flushing functionDRS
SeriesSeries 3, index 232
Directions of rotationViewed on drive shaft counter-clockwiseL
SealFKM (fluorocarbon rubber)V
Drive shaftsame as shaft "U", but for higher torque, limited suitability for through driveW
Mounting flangeBased on ISO 3019-1 (SAE) SAE C; 4-holeD
Working portaccording to ISO 6162 SAE flange ports at rear, metric fastening thread (not for through drive, "N00" only)11
Through driveWithout through driveN00
