Unit · AXIAL-PISTON PUMP

AP A10V O100 DFR1/31L-PSC11N00 -S2023R902446521

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO100DFR1/31L-PSC11N00-S2023, material number R902446521. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 2023.

Number
R902446521
Type code
AP A10V O100 DFR1/31L-PSC11N00 -S2023
Group
A10VO 100
Edition
06/2020

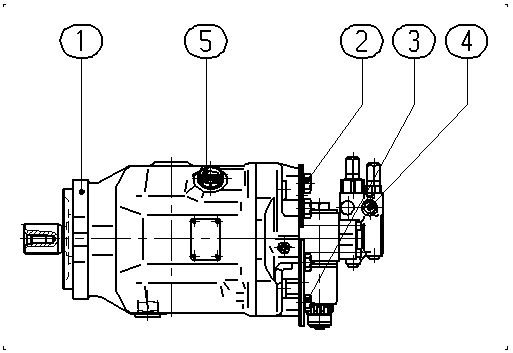

AP A10V O100 DFR1/31L-PSC11N00 -S2023 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902446522AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902603191SEAL SCREW1
R902602014SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)100100
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive11
Through driveWithout through driveN00
