Unit · AXIAL-PISTON PUMP
AL A10VNO 28 DRS /52R-VRC40N00 -S2290R902446973
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO28DRS/52R-VRC40N00-S2290, material number R902446973. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 2290.
- Number
- R902446973
- Type code
- AL A10VNO 28 DRS /52R-VRC40N00 -S2290
- Group
- A10VNO 28
- Edition
- 06/2020

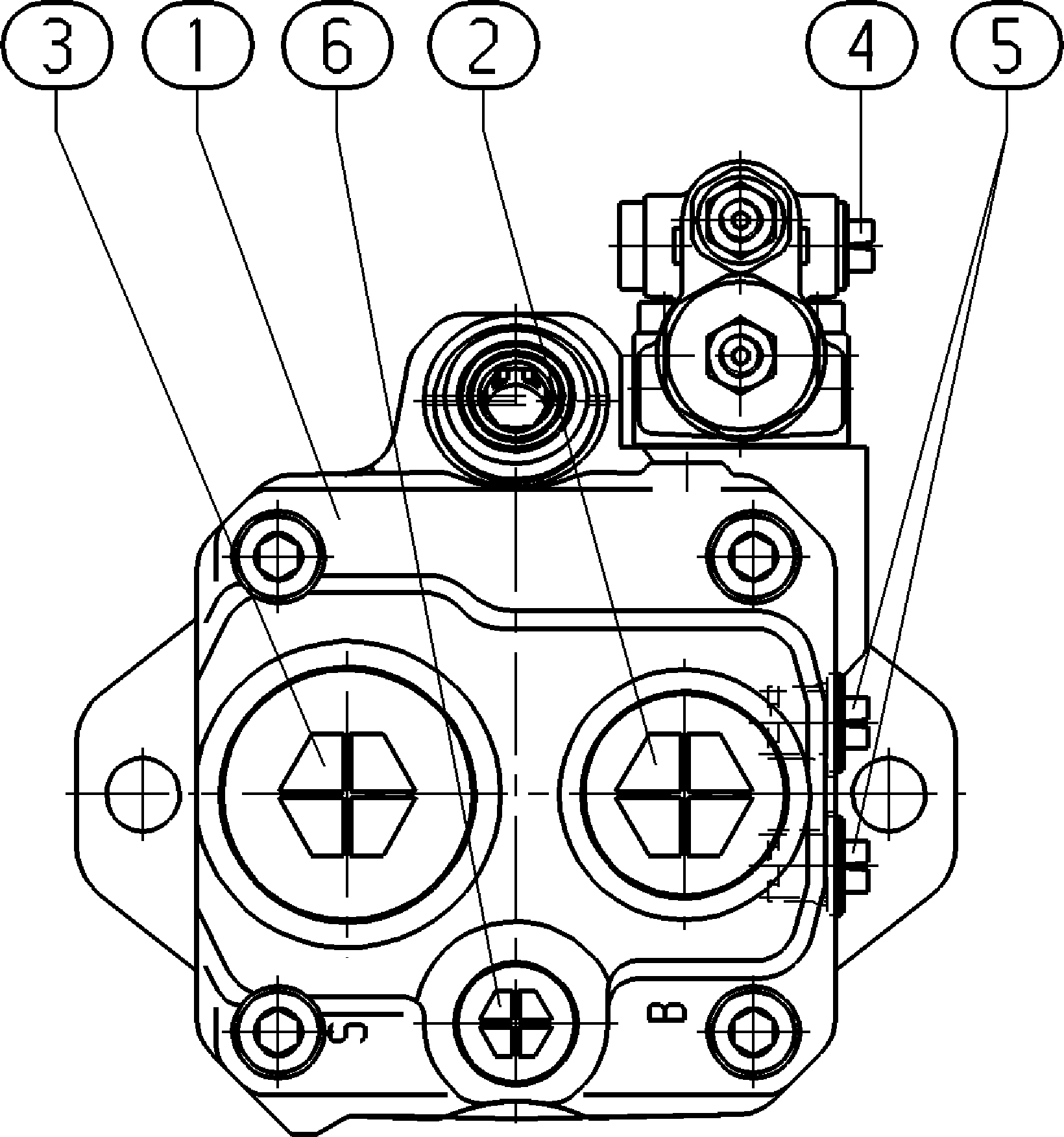

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436422 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602013 | SEAL SCREW | 1 | ||
| R902602206 | SEAL SCREW | 1 | ||
| R902602007 | SEAL SCREW | 1 | ||
| R902602008 | SEAL SCREW | 2 | ||
| R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 40 | 40 |
| Through drive | Without through drive | N00 |
