Unit · CONTROL

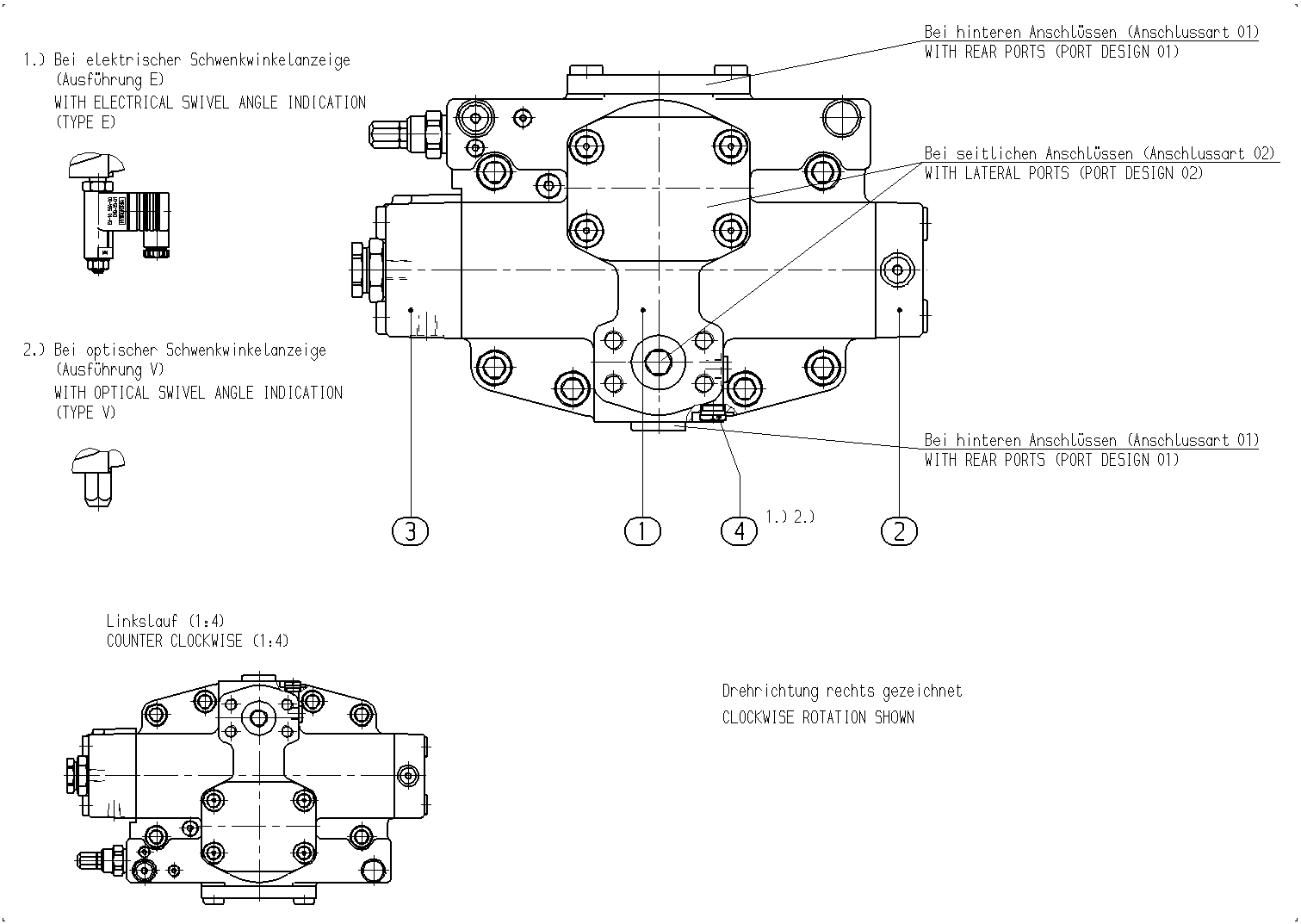

VH A7V O 250 LRDH2/63R-V 02R902446989
Control Bosch Rexroth series A7VO, type code VHA7VO250LRDH2/63R-V02, material number R902446989. Nominal size: NG 250.
- Number
- R902446989
- Type code
- VH A7V O 250 LRDH2/63R-V 02
- Group
- A7VO 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902421385 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910999507 | CONTROL PART Assembly parts list →L | 1 | ||
| R910934709 | COVER Assembly parts list →L | 1 | ||
| R910927370 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| High-Speed-Version (only mineral oil) | H | |
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| with hydraulic stroke limiter initial position Vg max Δp = 25 bar | LRDH2 | |
| Series 6, Index 3 | 63 | |
| FKM (Fluoro-rubber) | V | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 |
