Unit · CONTROL
V A4VSG 250 EPB /30X-VR902447528
Control Bosch Rexroth series A4VSO, type code VA4VSG250EPB/30X-V, material number R902447528. Nominal size: NG 250. Axial piston unit: swashplate design (A4VSG).
- Number
- R902447528
- Type code
- V A4VSG 250 EPB /30X-V
- Group
- A4VSG 250
- Edition
- 07/2020

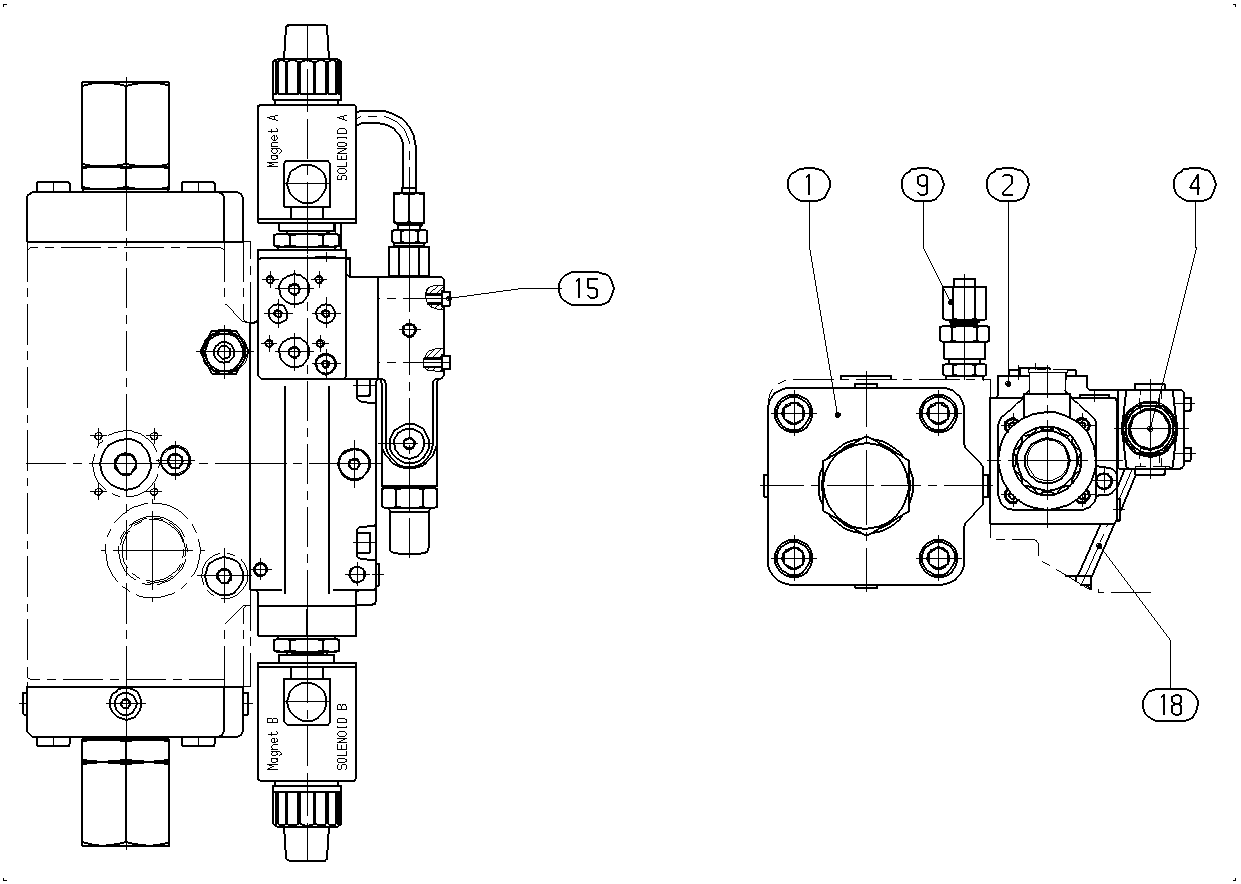

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910991566 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902417956 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989308 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910962346 | CHECK VALVE | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989928 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 250 | 250 |
| With pressure control in B | B | |
| Series | Series 3, index 0 | 30 |
