Unit · CONTROL
V A7V O 355 DRG /63L-V 02ER902447678
Control Bosch Rexroth series A7VO, type code VA7VO355DRG/63L-V02E, material number R902447678. Nominal size: NG 355. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: remotely controlled (DRG). Direction of rotation: viewed on drive shaft (L). Sealing material: FKM (fluoroelastomer) (V). Port plate for working lines: SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric (02).
- Number
- R902447678
- Type code
- V A7V O 355 DRG /63L-V 02E
- Group
- A7VO 355
- Edition
- 06/2020

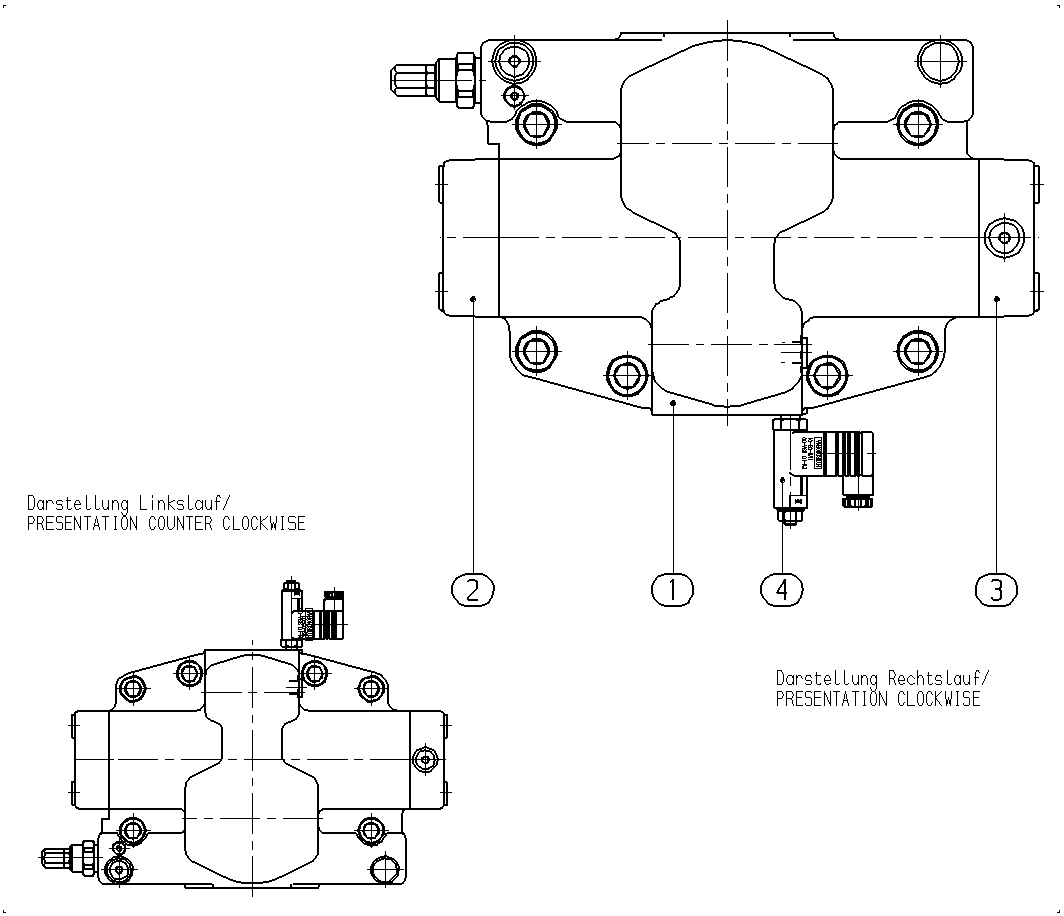

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902447679 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910971829 | COVER Assembly parts list →L | 1 | ||
| R910971830 | COVER Assembly parts list →L | 1 | ||
| R910963272 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 355 | 355 |
| Control device | remotely controlled | DRG |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | L |
| Sealing material | FKM (fluoroelastomer) | V |
| Port plate for working lines | SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric | 02 |
