Unit · AXIAL-PISTON PUMP
AHA10VSO100DFEO/31R-PPA12K07-S1193R902447899
Axial piston pump Bosch Rexroth series A10VSO, type code AHA10VSO100DFEO/31R-PPA12K07-S1193, material number R902447899. Nominal size: NG 100. Version: high-speed version (external dimensions are not affected by this option) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 1193.
- Number
- R902447899
- Type code
- AHA10VSO100DFEO/31R-PPA12K07-S1193
- Group
- A10VSO 100
- Edition
- 06/2020

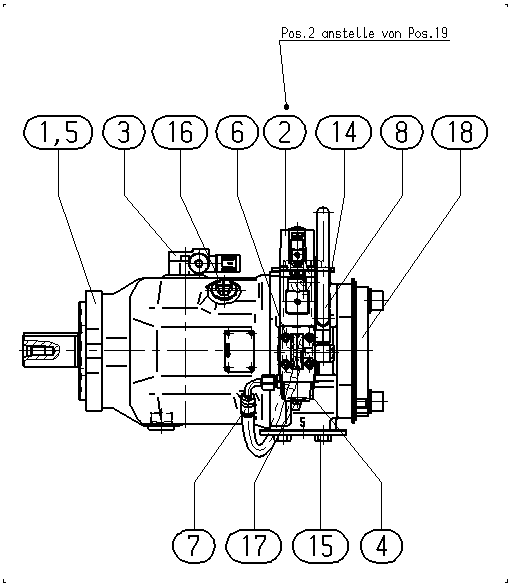

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902447937 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902409294 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910918098 | SIDE MARKER RING | 1 | ||
| R910969083 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902410407 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602012 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902602979 | FLANGE COVER | 1 | ||
| 19 | R902452844 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are not affected by this option) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
