Unit · AXIAL-PISTON PUMP

A A10VSO 45EP5ER/31R-PPA12N00HR902448057

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45EP5ER/31R-PPA12N00H, material number R902448057. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H).

Number
R902448057
Type code
A A10VSO 45EP5ER/31R-PPA12N00H
Group
A10VSO 45
Edition
06/2020

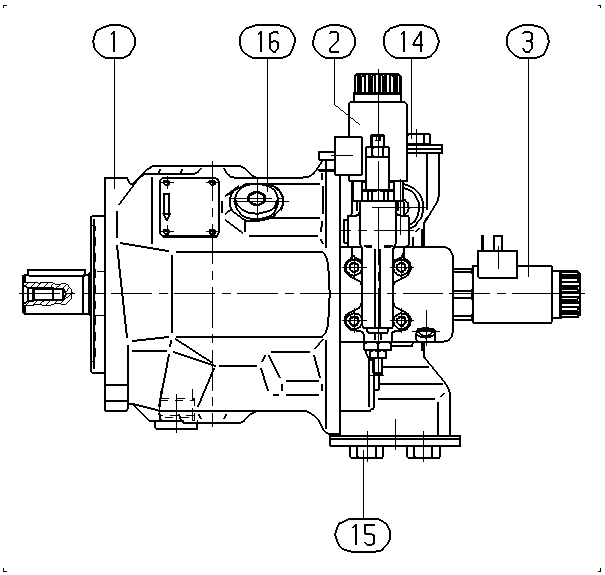

A A10VSO 45EP5ER/31R-PPA12N00H — Drawing
Pos.NumberNameQtyAdd to inquiry
R902448067BASE UNIT Assembly parts list →L1
R902533518CONTROL VALVE Assembly parts list →L1
R902447770CONTROL VALVE Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R902602011SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00
Connector for solenoidsHIRSCHMANN connector – without suppressor diodeH
