Unit · AXIAL-PISTON PUMP
A A10VSO 18ED 72/31R-VRC12K52TR902448156
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18ED72/31R-VRC12K52T, material number R902448156. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with pressure cut-off electric negative control U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 Similar to shaft "S" however for higher torque (R). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R902448156
- Type code
- A A10VSO 18ED 72/31R-VRC12K52T
- Group
- A10VSO 18
- Edition
- 06/2020

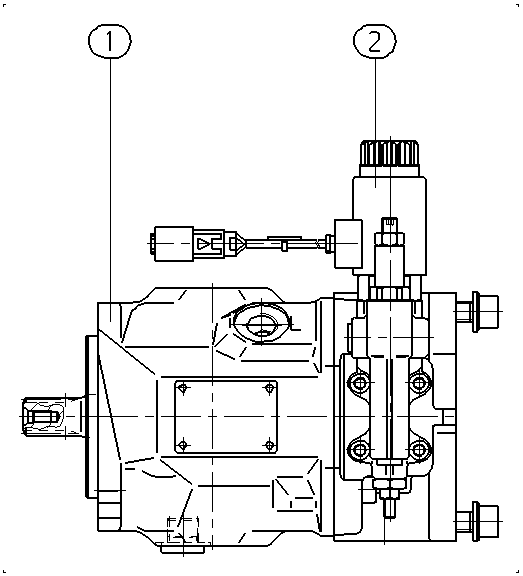

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902448128 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533436 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with pressure cut-off electric negative control U = 24 V | ED72 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 Similar to shaft "S" however for higher torque | R |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
