Unit · AXIAL-PISTON PUMP
AL A10VSO 10 DFR1/52R-VUC64N00 ER902449158
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO10DFR1/52R-VUC64N00E, material number R902449158. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged With flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 Reduced diameter (U). Mounting flange: based on ISO 3019-1 2-hole (C). Working port: threaded port, UNC Rear (64). Through drive: without through drive (N00).
- Number
- R902449158
- Type code
- AL A10VSO 10 DFR1/52R-VUC64N00 E
- Group
- A10VSO 10
- Edition
- 06/2020

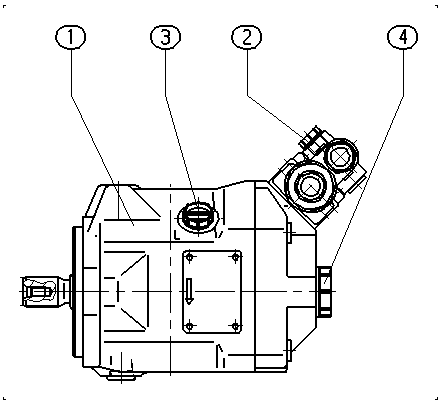

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902452608 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902602015 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10VS |
| Operating mode | Pump, open circuit | O |
| Control device | With flow controller X-T plugged With flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 Reduced diameter | U |
| Mounting flange | Based on ISO 3019-1 2-hole | C |
| Working port | Threaded port, UNC Rear | 64 |
| Through drive | Without through drive | N00 |
