Unit · AXIAL-PISTON PUMP

A A10V O 45 DFLR/31R-PUC62H00 -S1868R902449225

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFLR/31R-PUC62H00-S1868, material number R902449225. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Special version no. 1868.

Number: R902449225
Type code: A A10V O 45 DFLR/31R-PUC62H00 -S1868
Group: A10VO 45
Edition: 06/2020

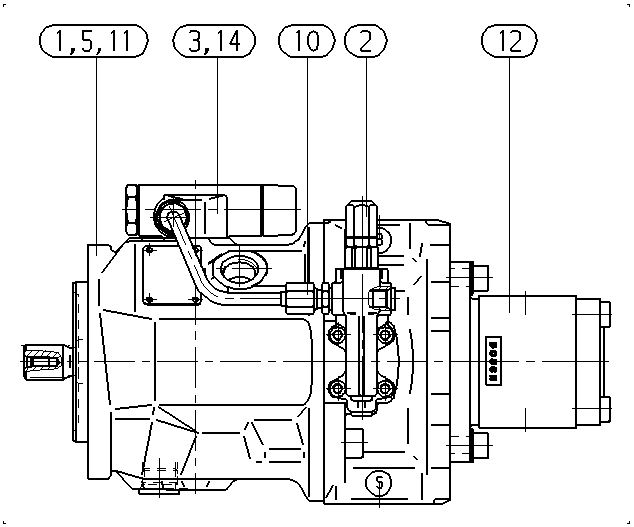

A A10V O 45 DFLR/31R-PUC62H00 -S1868 — Drawing

Pos.	Number	Name	Qty
	R902436532	BASE UNIT Assembly parts list →L	1
	R902533361	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910918079	SIDE MARKER RING	1
	R910960164	PIPING Assembly parts list →L	1
	R910909123	POWER DIAGRAM	1
	0510525041	HYDRAULIC GEAR PUMPL	1
	R909154478	SCREW PLUG	1
61	R910109606	SOCKET HEAD CAP SCREW	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Drive shaft	Reduced diameter; limited suitability for through drive	U
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62

Other versions 1

R902449224 AL A10V O 45 DFLR/31R-PUC62H00 -S1868
