Unit · AXIAL-PISTON PUMP
A A10V O 60ED 72/52R-VWC62K01TR902449847
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60ED72/52R-VWC62K01T, material number R902449847. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R902449847
- Type code
- A A10V O 60ED 72/52R-VWC62K01T
- Group
- A10VO 60
- Edition
- 06/2020

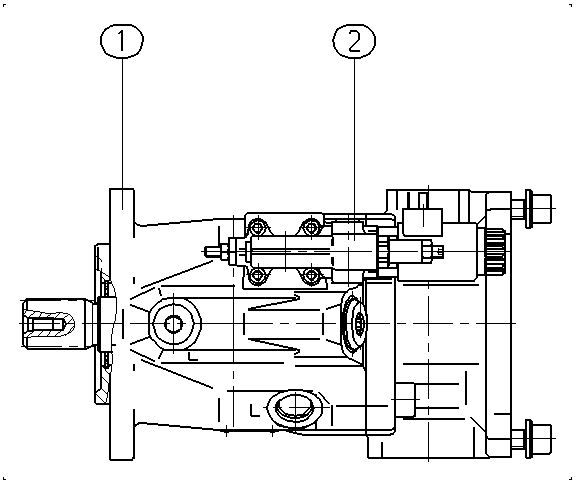

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902416310 | BASE UNIT Assembly parts list →L | 1 | ||
| R902550810 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
