Unit · AXIAL-PISTON PUMP
A A10V O 60 DFR1/52W-VWC10N000 -S1485R902449850
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52W-VWC10N000-S1485, material number R902449850. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00).
- Number
- R902449850
- Type code
- A A10V O 60 DFR1/52W-VWC10N000 -S1485
- Group
- A10VO 60
- Edition
- 06/2020

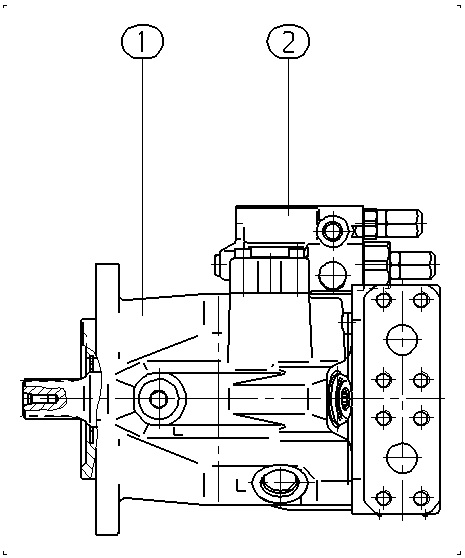

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902449784 | BASE UNIT Assembly parts list →L | 1 | ||
| R902472490 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
